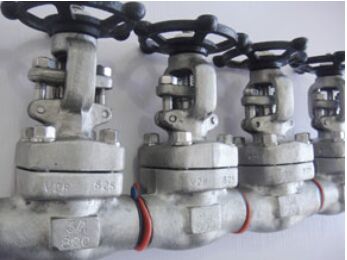

INCOLOY GATE VALVE

INCOLOY GATE VALVE

Listing ID #6001976

550 / Piece
Get Latest Price
  • Face to Face DimensionANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Nominal SizeDN50 to DN500
  • OperationsHandwheel Operated, Electric Actuated, Pneumatic Actuated
  • Body MaterialIncoloy
  • Supply Type Exporter, Supplier, Retailer, Distributor, Trader
  • Preferred Buyer Location India only
View More Details
Send Enquiry

Company Information

specialityvalve verified-icon
Pn Palayam, Coimbatore, Tamil Nadu
View Number
  • Member Since 3 Years
  • Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Nominal Size DN50 to DN500
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Class 150, 300
  • End Connections Flanged, Socketweld, Buttweld
  • Size 1", 2", 3"
  • Nominal Pressure PN1.0 to 25MPa, Class150 to Class2500
  • Body Material Incoloy
  • Face to Face Dimension ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Butt welded End Dimension ANSI B16.5

Dimensions                                                                                                  Unit: mm

Class 150

DN L d H H1 W W1
RF RTJ BW
50 178 191 216 51 400 – 200 –
65 190 203 241 64 435 – 200 –
80 203 216 283 76 515 – 250 –
100 229 241 305 102 595 – 280 –
125 254 267 381 127 725 – 280 –
150 262 279 403 152 780 820 300 310
200 292 305 419 203 975 1020 350 310
250 330 343 457 254 1150 1200 400 310
300 356 368 502 305 1380 1430 450 310
350 381 394 572 337 1545 1580 500 310
400 406 419 610 387 1733 1780 500 460
450 432 445 660 438 1915 1990 500 460
500 457 470 711 489 2122 2220 600 460
