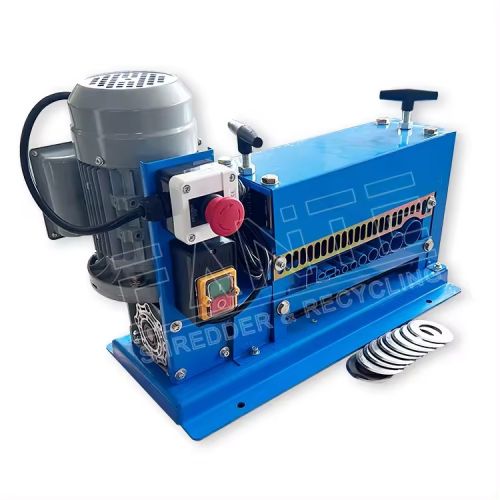

IE-038 Scrap Wire Striping Machine

Listing ID #7374210

43,500 / Piece

Get Latest Price

MOQ 1 Piece
Brand NameIndoe Enterprises
Country of OriginIndia
Automation GradeScrap
MaterialStainless Steel
Supply Type Manufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Brand Name Indoe Enterprises
Country of Origin India
Automation Grade Scrap
Material Stainless Steel
Automatic Grade Automatic
Outlet Diameter 1mm To 42 Mm
Voltage 220V
Color Blue
Blade 10
Production 300-450 Kg
Weight 38 Kg
Power 1HP/.5HP
Power Supply AC 220V / 110V, 50/60 Hz
Hole 11
Type scrap wire
Usage Stripping
Range 0.5 -40mm
Type Scrap copper
Packaging Type Wooden Box
Size 580*280*370mm
Wire Range 0.5-40 mm
Size 580 x 280 x 370 mm
Warranty 1 year
Warranty 1 year
Packaging Type Wooden Packaging
Size 580*280*370mm
Model Number IE-038

1 HP Motor Single Phase Machine Price = 43500+18% Gst Extra

◼︎According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.

◼︎ When stripping wire, the center of the blade must be collinear with the center of the groove corresponding to the stripping machine roller.

◼︎ When stripping the wire, adjust the distance between the blade and the V-groove (the groove formed between the two rolling teeth) according to the thickness of the wire, so that the wire skin can be peeled off without damaging the copper core.

◼︎ If the wire stripping machine cannot strip the wire during the stripping process, there may be several reasons: ①The diameter of the stripped thread is too small. ②The center of the blade is not in line with the center of the V-shaped groove formed by the two rolling teeth.

01.Blade adjustment

Adjust according to the thickness of the cable and automatically adjust the depth of the blade pressing down.

02.Control buttons

The control switch is sensitive in sensing, ensuring normal operation and convenient operation during use.

03.Alloy steel knife

High strength thickened manganese steel blade, high hardness, more wear-resistant, tough and sharp, easy to strip wire.

04.Entry hole

According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.

Name

Wire Stripper

Function

Stripping Wire

Weight

80kg

Application

Scrap Copper Wire Cable

Power supply

110V

Warranty

12 Months

Capacity

30 meters per minute

Power

370W

Range

1.5-35mm

Size

600*580*840mm

Packaging Details

Seaworthy package for 2023 New Cable Recycling Machine Automatic Waste Wire Stripping Machine Stripper Of Electric Cable

Port

Shanghai port or other port can be choose

Selling Units:

Single item

Single package size:

10X10X10 cm

Single gross weight:

500.000 kg

Additional Information

Port of Dispatch transport, supliear
Packaging Details Packaging Details Seaworthy package for Electric Wire Stripping Machine Automatic Wire Stripping Machine Strips Scrap Copper Wire Port Shanghai port or other port can be choose Selling Units: Single item Single package size: 53X26X39 cm Single gross weight: 350.000 kg
Delivery Time 1-5 days
