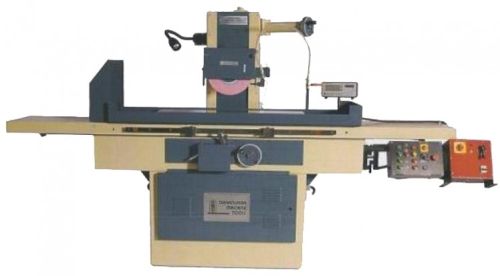

Hydraulic Surface Grinder

Listing ID #3917395

• Description: Hydraulic High Precision Surface Grinder

  • Machine made of high grade C.I. with vibration absorbing quality and critical parts stress relived
  • Vertical Feed Screw & Cross Screw are hardened & ground
  • For friction free movement on ‘X’ & ‘Y’ axes, ‘V’ & ‘Flat’ of fixed slide is coated with Turcite
  • Spindle runs with multiple RHP super precision P7 grade bearings, grease packed for life. This provides highly precision movement i.e. zero end float & zero radial play.
  • Vertical movement of Wheel head is driven by independent motor. Least Count 0.002 mm
  • Cross feed is infinitely variable 0.3- 6 mm/stroke. Least Count 0.01 mm
  • Machine is equipped with Electro-magnetic chuck, Hydraulic System with independent motor, motorized coolant system, centralized lubrication, wheel balancing stand

  Specifications: (In mm unless specified otherwise)

• Higher table speed up to 18 M/min available on request

Accuracy: As per IS Standard 2743

• Parallelism of table movement to Surface of Magnetic Table (X-Axis): 0.015/ 460 mm
• Parallelism of table movement to Surface of Magnetic Table (Y-Axis): 0.01/ 200 mm

Application:

• Surface of Engine Blocks, Gears, Washers, Machine Frames, Valve Plates, Saw Blades, Blanks
• Clutch, Piston Rings, Connecting Rods, Crankshafts, Fuel Injection Components

Accessories:
Dust Collector, Universal 3-way Vice, Radius Truing Device, Wheel Dresser, Sine Table, Digital Readout
