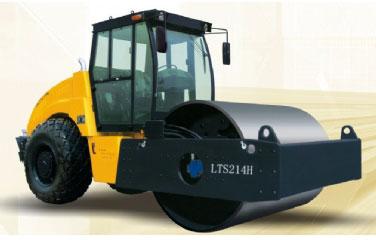

Hydraulic Single Drive Vibratory Roller

Listing ID #381366

Get Latest Price

Supply Type Manufacturer, Supplier
Preferred Buyer Location All over the world

Offering good compaction for cohesive and non-cohesive materials, our Hydraulic Single Drive Vibratory Roller is highly demanded for large-scale mechanized construction applications. We are renowned....

View More Details

Send Enquiry

Product Details

Offering good compaction for cohesive and non-cohesive materials, our Hydraulic Single Drive Vibratory Roller is highly demanded for large-scale mechanized construction applications. We are renowned as one of the prominent Hydraulic Single Drive Vibratory Roller Suppliers in India. The Hydraulic Single Drive Vibratory Roller can be availed from us at competitive prices. Details

The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force
Power System : CUMMINS extra-pressure diesel engine, huge power man coeffciency, complicable for the operating condition above 4000 meters altitude.
Total hydraulic pressure, total drive, frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology; Blocking the oil supply to brake the vehicle, safe and reliable.

Technical Parameters

Model	Unit	LTS214H	LTS212H	LTS208H
Operating massÂ	kg	14000	12000	8000
Static linear load	N/cm	342	300	235
Vibration amplitude	mm	1.8/0.9	1.7/0.8	0.4
Vibration frequency	Hz	29/35	28/35	43
Centrifugal force	KN	290/160	260/160	70
Travel speed	Km/h	12	11	0-15
Gradeability	%	30	30	25
Turning radius	mm	6500	6500	5000
Overall dimension	mm	5860x2280x3020	5820x2278x3050	5010x1880x2570
Drum width	mm	2100	2100	1700
Wheelbase	mm	3160	3160	2750
Ground clearance	mm	472	472	320
Diesel power	Kw	110	110	75
Diesel model	-	CUMMINS6BT5.9	CUMMINS6BT5.9	CUMMINS4BT3.9
