Hydraulic Set Seal Bore Retrievable Packer

Listing ID #4398413

Get Latest Price

CustomizationYes
Casing Size7"- 9 5/8"
Brand NameWellcare

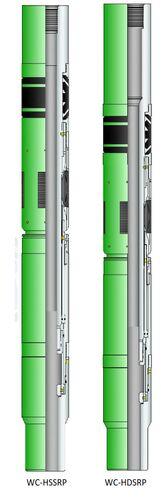

ModelWC-HSSRP [Single Bore] & WC-HDSRP [Dual Bore]
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

the hydraulic set seal bore retrievable packer is a hydraulic set, high performance, seal bore retrievable production packer. Although originally designed for premium gravel pack applications , they may also be used as standard completion packers in high pressure and high temperature wells where premium retrievable retainer production packers are required. This packer is fully compatible with standard sealing accessories including retrievable and expandable plugs.
features/benefits:
• one trip installation
• no tubing manipulation required, the setting mechanism is actuated hydraulically with pump pressure alone at any depth. The tubing can be displaced and the packer set after the well is flanged up.
• single, self energizing cup forming packing element for repeated low and high differential reversals. Nitrile packing elements are standard.
• bi-directional, case hardened slips are suitable for all grades of casing. The slips are protected by the slip cage during run in.
• packers may be run in tandem with anchor tubing seal nipple
• a left hand thread is provided in the body head of the packer. This accepts standard packer accessories and also provides a means of positioning the retrieving tool.
• the releasing mechanism for the packer is not affected by thedifferential pressure of tail pipe weight.
• short overall length facilitating easy running/retrieving through doglegs and tight spots.

Company Details

WELLCARE OIL TOOLS PRIVATE LTD., a privately held company, engaged in Design, Manufacture and supply of a comprehensive range of highest quality Downhole Drilling & Production Oil Tools for the Oil & Gas Industry comprising Hydraulic / Mechanical Set, Rotating & Non-rotating Liner Hangers, Mechanical & Hydraulic Permanent & Retrievable Seal Bore / ERD Packers & Accessories , Float Shoes & Collars, Stage Cementing Collars, Wireline set & Retrievable Bridge Plugs, Cement Retainers, Milling & Retrieving Tools, Cementing Heads, Centralizers and Stop Collars at its new plant located at Alwar (Rajasthan), India.
The Company has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that WELLCARE products match the highest quality & reliability Standards similar to any International major in this field. A well-established Quality System from Materials receipt to Products delivery ensures consistent quality at all levels of the activity. The required inspection and test facilities are installed in house. The company complies with all the legal, statutory and regulatory requirements.
The facility is equipped with latest machining facilities like CNC 3-axis Turning centers, CNC 4-axis milling center, Center Lathe Machines, Deep Hole Drilling, Boring & Honing Machines enabling the Company to meet its production target. Design Department is equipped with CAD facilities and have on rolls qualified & experienced engineers and have been engaged in development of new products as required in the market place.
WELLCARE has furnished Downhole Oil tools in several metallurgical configurations for service in different geologies to Indian Public Sector Companies as well as Private Operating Companies. WELLCARE offers services of qualified and experienced engineers for customer training, running & redressing of its manufactured & supplied products in On-Shore and Off-Shore Oil & Gas Wells. We have fairly extensive range of satisfied Customers.
We believe in Quality and customer satisfaction is our main motto. We are committed to timely supply of Quality Products & Services at competitive prices by PDCA approach for Continual Improvement in our Manufacturing Processes.
