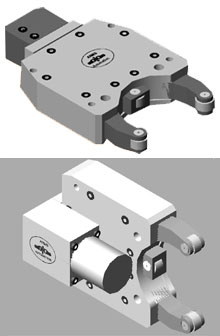

Hydraulic Self Centering Steady Rest, offered by us, is compact and ideal for holding of round jobs. Our Hydraulic Self Centering Steady Rest saves time and eliminates rejection of jobs. Hydraulic Self Centering Steady Rest, that we offer can be programmed through the CNC system. Our Hydraulic Self Centering Steady Rest is known for giving good centering accuracy & the repeatability. We make available various models of Hydraulic Self Centering Steady Rest, such as side mounted cylinders, rear mounted cylinders, pneumatic ,servo controlled etc. Our Hydraulic Self Centering Steady Rest has special rollers that give good surface finish. Lubrication system and fully heat treated parts give better life for our Steady Rest. Salient Features

• The steady rest can be used for any CNC lathes with a suitable bracket
• No Setting time for the change of job diameter
• The steady can also be used as a travelling steady, hence no need of a follower rest
• Repeatability is within 5 microns
• Applications
  • Machining of Long Slender Shafts
  • For end operations
  • Automatic Holding of Jobs In CNC Turning Machines
  • Crank Shaft Machining
  • For Grinding Applications
  • Working principle The steady rest consists of 3 arms assembled in a steel body with rollers at the arms for holding the work piece. The centre one brings the other two arms in a circular movement to hold at the center of the work piece .This helps to get the repeatability and consistency in getting the centering accuracy The centre arm is operated by a hydraulic cylinder. The job holding rollers are lubricated through centralized lubricating system. Types of Steady Rests
    • Hydraulic Self Centering Steady rest with rear mounted cylinder
    • Hydraulic Self Centering Steady rest with side mounted cylinder
    • Pneumatic Self Centering Steady rest
    • Self Centering Steady rest with servo control
    • Hydraulic Self Centering Steady rest for grinding
    • Hydraulic Self Centering steady rest for crank shaft grinding
    • Hydraulic Self Centering steady rest for crank shaft turning
    • Hydraulic Self Centering steady rest for cam shafts
    • Hydraulic Self Centering steady rest for special purpose
    • Hydro pneumatic self centering steady rests
