HYDRAULIC RAM TEST SETUP
DESCRIPTION:-

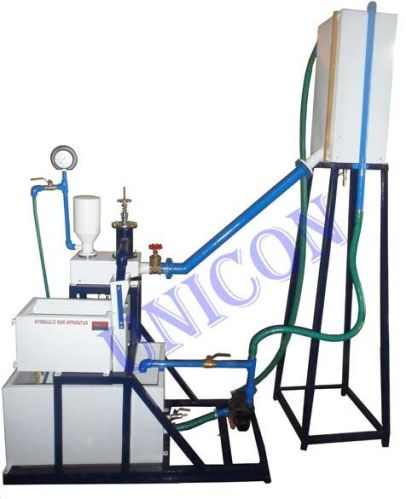

The Set-up is designed to study the Hydraulic Ram. Hydraulic RAM is used for pump little quantity of water to high head from a large quantity of water available at low head. It works on a principle of water hammer stating that “When flowing water is suddenly stopped in a long pipe a pressure wave travels along the pipe creating an effect of water hammer”. The Set-up consists of a pipe section fitted with a pulse valve and non-return valve, a supply reservoir on a stand which is connected to an overhead tank, an air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic. The flow rate of useful and waste water is measured using measuring tank and stop watch provided. Pressure and Vacuum Gauge are connected on delivery and suction side for the purpose of measurement.
EXPERIMENT:-
Ø To find out discharge of useful water and waste water.
Ø To find out the efficiency of the Hydraulic RAM
FEATURES:-
Ø Closed loop water circulation
Ø Compact & stand alone set-up
Ø MS Excel sample calculation program on demand
Ø Stainless Steel tanks and wetted parts
Ø Superb painted structure
Ø Simple to Operate & Maintain
UTILITIES REQUIRED:-
Electric Supply: - Provide 230 +- 10 VAC, 50 Hz, Single Phase Electric Supply with proper earthing. (Neutral – Earth voltage less than 5 VAC)
5 A, three pin socket with switch for pump.
Water Supply: Tap water connection ½ “ BSP
Distilled water @ 90 Ltrs. (Optional)
TECHNICAL SPECIFICATIONS: -
Ø Product : Hydraulic RAM
Ø RAM : Size 50 x 15 mm, Supply Head 2.5m, Delivery Head 10 m (max.)
