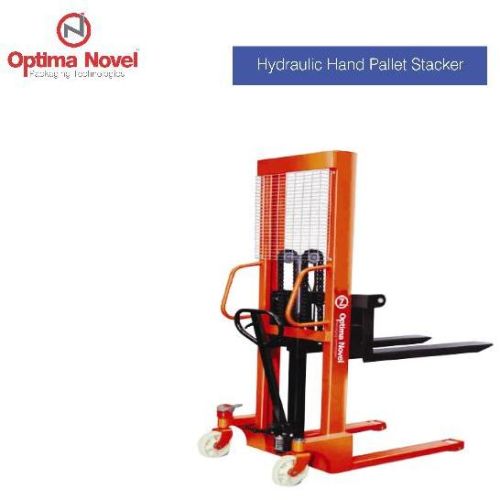

Contact Supplier*stackers are hard chromed, polished pistons that are resistant to rust, scratches and wear.
*stackers have double sealed high pressure polyurethane oil seals, to ensure long life of the hydraulic system.
*stackers are ergonomically designed steering handle to prevent leakage.
*stackers are to reduce pulling power and minimize operator fatigue. Light and compact construction. For easy operating from all angles.
*stacker’s area available in standard, stainless steel, galvanized version with or without braking facility.
Application:
the manual stackers are ideal for the lifting and transportation of palletized loads with various lift heights
specifications
capacity(kg) 1000
max lifting height(mm) 1600
lowered height of forks(mm) 85
fork length(mm) 900
adjustable width of fork(mm) 270-680
lifting speed(mmstroke) 14
lowering speed(mmstroke) controllable
outer width of front legs(mm) 750
operation power of crank(kg) 32
min. Refuel volume of fuel tank(l) 2.0
front wheel size(mm) 85x50
rear wheel size(mm) 180x50
overall size(mm) 2050x750x1480
self weight(kg) 180
