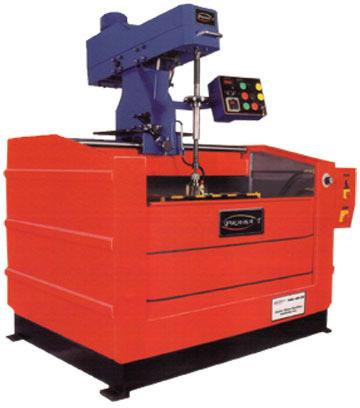

Hydraulic Honing Machine

Listing ID #3400038

Owing to our exceptional automated warehouse, the human interference has decreased that help us to make on-time deliveries as well. With substantial storage space, the products are kept with utmost safety to circumvent loss during loading and unloading. Want to obtain Hydraulic Honing Machine at market's lowest prices? Deal with us. We are famous supplier of Hydraulic Honing Machine
Technical Data :

• Maximum Honing Diameter 140 mm (5.5") (optional 200 mm)
• Minimum Honing Diameter 62 mm (2.5") (optional 32 mm)
• Minimum Honing stroke 50 mm (2") Maximum Honing Stroke 400 mm (16")
• Spindle Speed (Infinitely variable)
• 25-300 rpm Stroke Speed Infinitely variable
• Motor for Spindle Drive 1.5 kw/2 hp Power pack
• Motor Capacity 0.75 kw/1 hp Coolant Motor 0.08 kw/1 hp
• Honing Head Traverse 1125 mm (44.30")
• Height of the Machine 1850 (72.5")
• Length of Machine 1660 (65.4")
• Width of Machine 1400 (54.7")
• WorkSpace Required(L x W x H) 1660 x 1400 x 2100 (65.4" x 55.2" x 82.7) Net Wt (Approx) 900 kg Gross Wt (Approx) 1500 kg

Optional Accessories :

• Friction feed unit (Honing Head)
• PLC Control System, Touch screen.
• Two Wheeler Clamping Attachment (Mechanical & Hydraulic)
• Stock Count Unit
• Quick Clamping Device Model-VHM

Standard Accessories : Honing Head 60 mm To 140 mm (2.3" to 5.5") 01 No Setting Up Parallel 100 mm 01 Pair Honing Stone 12 x 12 x 100 (400 c) 04 Nos Honing Buff 12 x 12 x 100 (400 c) 04 Nos T-Bolt With Nut And Washer 06 Nos Block Tightening Clamp 04 Nos
