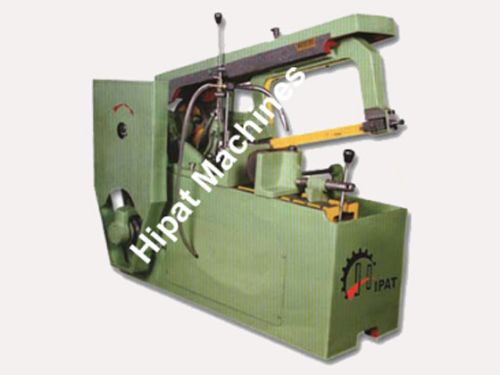

Hydraulic Hacksaw Machine

Listing ID #3850372

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Main features Hydraulic Feed ControlHydraulic Relief to Swa Blades on non-cutting Stroke.Automatic lift to bow on completion of cutting cycle and motor switched off automatically.Two speeds and....

View More Details

Send Enquiry

Product Details

Main features

Hydraulic Feed Control
Hydraulic Relief to Swa Blades on non-cutting Stroke.
Automatic lift to bow on completion of cutting cycle and motor switched off automatically.
Two speeds and driven by V- Belts.
Cut Metals of all kinds and strengths.
High output at low initial cost.

Saw frame
This is of rigid construction and runs in prismatic gudide ensuring a square and parallel cut, this cut takes place on the draw stroke and the blade is hydraulically lifed out of contact with workpiece on the forward to prevernt stroke to prevernt wear or the blade and can cut metals of all kinds and strength.
Feed
Two leavers are provided at the dash pot one regulates the rate of feed while the other enables to be raised or forwarded hydraulically bow raised automatically and motor switched off on completion of the cut.
Bed
The bed of his large proportion provided with guide ways for the vice for clamping the material vice is of rigid construction one jaw remains fixed and the other can be adjusted according to the materials to be cut.
Electical equipment
A direct on line push button starter can be fitted which incorporates an adjustable trip mechanism which stops the machine as soon as the blade is clear from the work, non productive time is reduced to minimum.
Drive
Power is supplied by a suitable electric motor through vee-belt which are full adjustable for tension all drive mechanism being totally enclosed.
Speed
The incorporation of two speed driving mechanism allows for the most suitable speed to be selected for material being cut.
Coolant
The coolant tank is totally enclosed in the machine base and a contant speed pump supplies coolant to the saw blade through a stay put pipe and tap.

Technical Specifications

SIZE	8”	10”	12”	16”	20”	24”
STROKE (ADJUSTABLE)	51/2”	51/2”	51/2”	51/2”	51/2”	51/2”
NO OF STROKE PER MINUTE	100 TO 120	85 TO 100	85 TO 100	70 TO 85	60 TO 75	60 TO 75
BLADE SIZE	12” OR 14”	16” OR 18”	18” OR 20”	22” OR 24”	30”	36”
CAPACITY OF ROUND BAR	7”	10”	12”	16”	20”	24”
CAPACITY OF SQUARE BAR	5”	8”	10”	13”	16”	16”
R.P.M	1440	1440	1440	960	960	960
ELECTRIC MOTOR REQUIRED	1 H.P	2 H.P	2 H.P	3 H.P	5 H.P	7.5 H.P
LENGTH	3’-2”	3’-10”	4’-2”	4’-10”	5’-10”	6’-2”
BREATH	1’-4”	2’-3”	2’-3”	2’-6”	3’-2”	3’-2”
HIGHT	2’-8”	3’-6”	3’-6”	5’-0”	6’-0”	6’-6”
WEIGHT(APPROX)	300 kgs.	550 kgs	600 kgs.	Kgs	1100 kgs.	1300 kgs.
V-Belt required	3 Pcs.	3 Pcs.	4 Pcs.	4 Pcs.	4 Pcs.	4 Pcs.

OPTIONAL ACCESSORIES	STANDARD ACCESSORIES	APPLICATIONS
1. BAR SUPPORT STAND	1. HIGH GRADE CASTING BODY	1. TOOL ROOMS
2. TILTING ANGULAR VICE	2. ROBUST FRAME	2.EDUCATIONAL INSTITUTES
3. HACKSAW BLADE	3. COLANT TRAY	3. WORKSHOPS
4. ELECTRIC COOLANT PUMP	4. INSTRUCTION MANUAL	4. ROLLING MILLS ETC
5. ELECTRIC MOTOR, STARTER, VEE BELT
