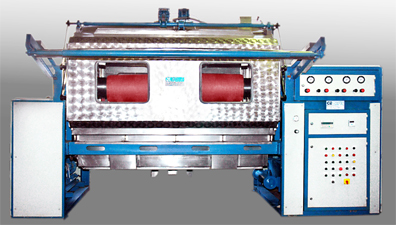

Contact SupplierThe new state of the art dyeing jiggers from GAYATRI offer all the advantages of customization using modern technology.
Automatic temperature control, Cushioned start/ slow stop, finger tip tension adjustment, safely device for exhausting steam before the doors are opened, indirect trough heating (this prevents dilution of liquor)
Liquor circulation is by means of a large filtering surface for better leveled dyeing, Selvedge shifting device is offered as standard on the fully-automatic version of 1000,500,300 & 75.
Using PLC & Touch Screen Display GAYATRI provide many advanced features, some of which are as under.
Special Features
MODEL | GAYATRI-1000 | GAYATRI-500 | GAYATRI-300 | GAYATRI-75 |
Fabric Width 1800 mm Roller Width 2000 mm Speed |
0-150 Mtrs/min | 0-130 Mtrs/min | 0-90 Mtrs/min | 0-40 Mtrs/min |
Max Batch Dia | 1400 mm | 1100 mm | 800 mm | 400 mm |
Fabric Tension | 5 - 50 Kg. | 5 - 50 Kg. | 5 - 30 Kg. | 2.5 - 30 Kg. |
Power Pack Capacity | 11 Kw | 5.5 Kw | 3.7 Kw | 2 Kw |
Heating |
With External Heat Excheanger |
With External Heat Excheanger |
With Coil Inside Trough |
Optional |
Circulation Pump + Filter | 2.2 kW/td> | 2.2 kW | Optional /2.2 kW | 1.1 kW |
Selvedge Shifting Device | Yes | Yes | Optional | Optional |
Dimensions : Height mm Length mm Width mm |
2750 3700 2750 |
2220 3450 2050 |
2200 3450 1715 |
1435 2955 800 |
