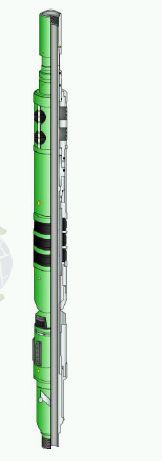

Hydraulic Compression Set Retrievable Packer

Listing ID #4127379

Get Latest Price

ConditionNew
Machine TypeHydraulic
MaterialMetal
Model No.WC-MECH-5
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Condition New
Material Metal
Warranty 1 Year
Model No. WC-MECH-5
Use Industrial, Mechanical
Machine Type Hydraulic

Compression Set Retrievable Packer is high pressure, full opening, compression set tools for squeeze cementing, acidizing, fracturing and other stimulation operations. This tools features a pressure balanced unloader that closes when the packer sets. While pressure aids in maintaining the seal, the un-loader can be easily opened under high differential pressure. The large internal by-pass reduces swabbing when running and retrieving.
Benefits :

Large internal by-pass.
Built in pressure-balanced un-loader.
1/4 turn set-straight pick up release (standard).
Equalizing ports directly above elements.
Additional J-slot arrangements available.

Applications :

Onshore-Offshore work over.
Production completion.
High Pressure Water Injection.
Casing integrity Testing & treating operations

Specification Guide

Casing				Packer
OD	Weight	ID range		Max. OD	Min. ID	Connection Thread specification
OD	Weight	Min.	Max.	Max. OD	Min. ID	Connection Thread specification
inch mm	Lb/ft	inch mm	inch mm	inch mm	inch mm	inch
4 1/2	9.5-13.5	3.920 99.56	4.090 103.88	3.750 95.25	1.88 47.75	2 3/8 EU 8 RD
4 1/2	11.06- 15.1	3.826 97.18	4.000 101.60	3.656 92.86	1.75 44.45	2 3/8 EU 8 RD
5 1/2 139.7	14-20	4.778 121.3 6	5.012 127.30	4.500 114.30	1.93 50.30	2 3/8 EU 8RD
7 177.8	20-26	6.276 159.4 1	6.456 163.98	5.875 149.22	4.000 101.60	2 7/8 EU 8RD
9 5/8 244.4	43.5- 53.5	8.535 216.7 8	8.755 222.37	8.250 209.55	4.00 101.60	4 1/2 8 EU 8RD

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

WELLCARE OIL TOOLS PRIVATE LTD., a privately held company, engaged in Design, Manufacture and supply of a comprehensive range of highest quality Downhole Drilling & Production Oil Tools for the Oil & Gas Industry comprising Hydraulic / Mechanical Set, Rotating & Non-rotating Liner Hangers, Mechanical & Hydraulic Permanent & Retrievable Seal Bore / ERD Packers & Accessories , Float Shoes & Collars, Stage Cementing Collars, Wireline set & Retrievable Bridge Plugs, Cement Retainers, Milling & Retrieving Tools, Cementing Heads, Centralizers and Stop Collars at its new plant located at Alwar (Rajasthan), India.
The Company has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that WELLCARE products match the highest quality & reliability Standards similar to any International major in this field. A well-established Quality System from Materials receipt to Products delivery ensures consistent quality at all levels of the activity. The required inspection and test facilities are installed in house. The company complies with all the legal, statutory and regulatory requirements.
The facility is equipped with latest machining facilities like CNC 3-axis Turning centers, CNC 4-axis milling center, Center Lathe Machines, Deep Hole Drilling, Boring & Honing Machines enabling the Company to meet its production target. Design Department is equipped with CAD facilities and have on rolls qualified & experienced engineers and have been engaged in development of new products as required in the market place.
WELLCARE has furnished Downhole Oil tools in several metallurgical configurations for service in different geologies to Indian Public Sector Companies as well as Private Operating Companies. WELLCARE offers services of qualified and experienced engineers for customer training, running & redressing of its manufactured & supplied products in On-Shore and Off-Shore Oil & Gas Wells. We have fairly extensive range of satisfied Customers.
We believe in Quality and customer satisfaction is our main motto. We are committed to timely supply of Quality Products & Services at competitive prices by PDCA approach for Continual Improvement in our Manufacturing Processes.
