Hydraulic chucks

Listing ID #3495075

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Hydraulic chucks offer high clamping forces and run-out qualities of up to 3µm at 3xD (Standard 3 µm, Strong 4µ, Slim 5µ) which makes them an excellent solution for HSM, rough....

View More Details

Send Enquiry

Product Details

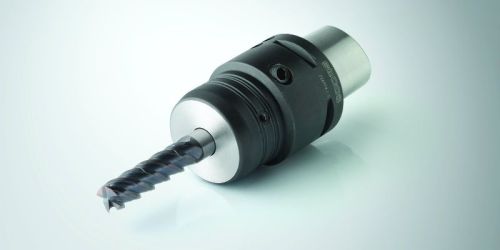

Hydraulic chucks offer high clamping forces and run-out qualities of up to 3µm at 3xD (Standard 3 µm, Strong 4µ, Slim 5µ) which makes them an excellent solution for HSM, rough and fine machining applications. The EPB 5831, a new slim profile version, even makes it easy to perform semi-finishing and finishing operations in confined spaces such as narrow mould cavities.

Very easy-to-use, the tool is clamped using one single pressurizing screw. An internal piston pressurizes hydraulic fluid into a chamber surrounding the holder bore, uniformly applying high pressure to grip 360° around the tool shank. This holds cutting tools with excellent precision.

Fine balanced as standard, hydraulic chucks can reach rotation speeds up to 40,000 rpm. The stop end screw allows the projection of the tool to be easily set, while reduction sleeves, acting as a split collet, allow the chuck to grip more shank sizes and types, including Weldon and Whistle Notch.

To prolong tool life and enhance precision, the bore has a helical groove where dirt, oil or grease can collect when it has inadvertently been left on the tool shank.

Company Details

Seco is one of the world’s largest providers of comprehensive metal cutting solutions for milling, stationary tools, holemaking and tooling systems. For over 80 years, we have been more than just a cutting tool provider. We develop and supply the technologies, processes and supports that manufacturers depend on to maximize productivity and profitability.
Headquartered in Fagersta, Sweden, Seco is present in more than 75 countries via nearly 4,100 team members. All Seco employees across the globe share a family spirit, along with a passion for our customers and personal commitment to ensuring their success.
Seco employees take a practical approach to applying high levels of metal cutting competence to overcoming customers’ challenges. Relationships built on trust and respect are vital to our success. We work closely with customers to understand their needs. We undertake cooperative ventures with universities and industry associations to monitor trends and develop solutions that meet the needs of unique segments. We partner closely with providers of complementary technologies to ensure manufacturers have access to comprehensively optimized solutions.
Seco is part of Sandvik Machining Solutions, the tooling business area of the Sandvik Group. For more in-depth information on any particular area of our company, please explore our site or use the contact us section to reach out to our team directly.
