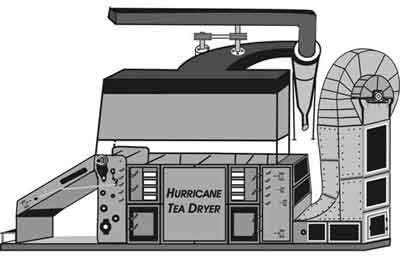

Hurricane Tea Dryer

Listing ID #15747

SALIENT FEATURESThree Stage Conventional dryerGear Drive Or Step Pulley Drive ArrangementControl Panel OperatedSuitable for:Coal/Wood/Le co/Oil/Gas Firing.Special Cyanide Free Plating trays.High Output & Low Maintenance Cost.Dust Collector SystemMoisture Extractor System.Pollution Free Environment.Low Power Consumption.Easy To Operate.Simple In Design.INTRODUCTIONGARG GROUP is a flagship organization in the field of Tea and serving the Tea World since last 2 decades. We are 0n Introducing the latest World Class State of the Art Technology.HURRICANE TEA DRYER, give you the optimum result at the minimum cost.HURRICANE TEA DRYER is Robust in Construction & Sophisticated in Design and is Simple to Use with the following featuresCOLD FEED ARRANGEMENTHURRICANE TEA DRYER has been fitted with PERFECTION Blank Feeder Trays and the gradient maintained special inclination degree in the unit. so that the, Fermented Leaf passes through the Feeder Trays and deliver to the drying Chamber.PERFECTION BLANK FEEDER DRYER TRAYSPERFECTION Round Back Blank Feeder Trays are Made from 18 Gauge CRC Sheet. fitted with 14 Gauge Rigid Pipe with Spedal cyanide Free Plating coupled with Cast Iron Ends.HURRICANE TEA DRYER has been incorporated with Revolving Spreader. which moves above the Top Row of the PERFECTION Blank feeder Trays.PERFECTION Blank Feeder Trays carries the Fermented Leaf. The Revolving Spreader adjusts the spreading Thickness of Fermented Leaf at your desired rate.DRYING CHAMBERHURRICANE TEA DRYER is fully insulated by asbestos fluff to prevent the heat loss. Special High Heat Resistance Glass windows are provided to see the Inside view clearly of Tea Firing conditions and Tray movements HURRICANE TEA DRYER is constructed with 1S-2062 Standard MS Ptates.HURRICANE TEA DRYER maintained the floor gradient of Drying Chamber In upward direction towards the feeding end to ensure the proper Inflow of air distribution throughout the entire machine.PERFECTION PERFORATED DRYER TRAYS ARRANGEMENTHURRICANE TEA DRYER has been fitted with PERFECTION Lip Back /Round Back Perforated Dryer Trays i.e. made from 20 Gauge CRC Sheet, fitted with 14 Gauge Rigid Pipe and have Special cyanide Free Plating coupled with Heavy Duty Cast Iron Ends, perforations details are as under:3/32" (2.381mm) Perforation for Top Two Circuits (4 Rows)1/16{"(1.587mm) Perforation for Bottom Circuit (2 Rows)TRAY CARRYING CHAINHURRICANE TEA DRYER Is coupled With High Tensile Tray Carrying Chain and all the Chain Pins are duly tempered to ensure longer life.PINIONSAll Pinions of HURRICANE TEA DRYER are Specially Hubs Treated and are made from 1S- 210 Grade Cast Iron to ensure longer life and smooth driving.BEARING HOUSINGHURRICANE TEA DRYER shafts move on the speedily designed Bearing Housing to run the Drying Chamber smoothlySCRAPPER UNITScrapper Unit is incorporated in the Drying Chambers underneath of the bottom Tray Circuit and moves on to the floor, which carries the fall through of very fine tea into the main discharge valve.DRIVE ARRANGEMENTHURRICANE TEA DRYER driven by 7.5 HP/5HP/3HP 1440 RPM TEFC Squirrel Cage , 4 Pole 400/440 Volt, AC Motor According to the Dryer Model/Capacity.VARIABLE SPEED DRIVE/STEP CONE Pulley DRIVE ARRANGEMENTHURRICANE TEA DRYER can be manufactured as per your specified Drive Arrangement, detailed as under: (a) Compact Infinite Variable Speed Drive Arrangement.(b) Step Cone pulley Drive arrangement.(While placing the order, please specify, required Drive Arrangements)SPEED REDUCER DEVICESpeed Reducer Device with Compact Infinite Variable Speed Drive arrangement.SAFETY DEVICEA very special Safety Device arrangement is mounted on the main driving shaft of the chamber coupled with arm and flange to prevent all sorts of damages and unlikely event of a jam.AIR SEALING DEVICESHURRICANE TEA DRYER consists of 11 sets of specially designed Aluminium Air Sealing Devices fitted with hanging adjustable baffles, which prevents the air leakage on Individual Circuit as well as to maintain the level of fired tea. Air Sealing Devices are fitted with hanging adjustable baffles and are incorporated In such a fashion that they will neither touch the tea nor the Tray Ribs. Therefore, there will be the Zero scope for breaking of Tea Granul and there will be no loss of Tea Blooms.EMERGENCY INSPECTION DOORSHURRICANE TEA DRYER has been provided with sufficient emergency Inspection doors to Inspect the tea as well as to inspect the foreign materials.INLET & EXHAUST THERMOMETERSHURRICANE TEA DRYER is coupled with latest GMU Inlet and Exhaust'Thermometers, detailed as under:(A) GMU INLET TEMPERATURE METER WITH HOOTER/ALARM FUNCTIONGMU Inlet Temperature Meter 6" Round Dial Electric Contact, Dual Display of °F &, °C with 20' long Capillary Tube fitted with 18" long Stainless Steel Stem and 3/4" or 1/2" BSP Thread for connection. Temperature ControlAlarm (Hooter), Wire Connector, Bulb Holder & ON/OFF Switch are fitted in Wooden Panel Board. Electric Contact Is fitted with Dial.Temperature Range: 0°F to 400°F & -20°c to 200°c(B) GMU EXHAUST TEMPERATURE METERER WITH HOOTER/ALARM FUNCTIONGMU Exhaust/Outlet Temperature Meter 6" Round Dial Electric Contact, Dual Display 0°F & 0°C, fitted with 12" long Stainless Steel Stem and 3/4" or 1/2" BSP Thread for connection. Temperature Control Alarm (Hooter) Wire Connector, Bulb Holder, & ON/OFF Switch are fitted in Wooden Panel Board. Electric Contact Is fitted with Dial. Temperature Range: 0°F to 400°F & -20°C to 200°CDOUBLE INLET AIR CHAMBERS & DELIVERY DUCT ARRANGEMENTDouble Inlet Air Chambers and Delivery Duct arrangements are made out of CRC Sheet and will be fully covered by anti radiation casing. filled by Glass Wool to prevent the heat loss.FAN ARRANGEMENTM. S. Fabricated Double Inlet centrifugal Fan Is Dynamically Balanced fitted with M. S. Shaft and mounted top of the air chamber. Fan driven by Suitable Electric AC Motor.DUST COLLECTOR & MOISTURE DISCHARGE UNITHURRICANE TEA DRYER has been especially designed with dust collector system to obtain the Fibre Free Made Tea and make pollution free environment in the dryer unit. A Special Duct has been provided to extract the moisture to throw it outside.CONTROL PANEL HURRICANE TEA DRYER will be controlled by the control panel and the sufficient regulators has been provided to operate dryer chamber, Hot Air Fan and Dust Collector Unit.GMU Hooter/Alarm Function Thermometer has been fitted to control the Maximum and Minimum Temperature of the Dryer.
