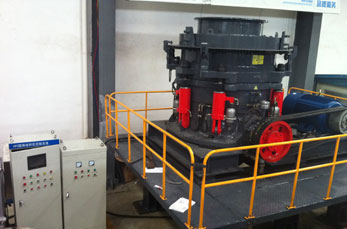

HPT Cone Crusher

Listing ID #4365938

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

HPT cone crusher has the same structure and the same crushing theory as traditional HPC cone crusher. But HPT cone crusher strengthens the performance of driving device and sealing service. And the....

View More Details

Send Enquiry

Product Details

Features

Optimized Structure for Higher Production Efficiency
Full Hydraulic Control for More Convenience and Reliability
Integrated Hydraulic Lubrication System
Inter-particle Crushing for Better Product Quality
Flexible Cavity Conversation and Wide Application

Application

HPT series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.

Technical Data

Model	Cavities	Feed opening (mm)	Minimum discharging size (mm)	Capacities (t/h)	Nominal installed power (kw)	Maximum installed power (kw)	Overall dimension (mm)
HPT100	C1(Extra Coarse)	140	19	75-140	90	90	1705×1510×1583
	C2(Coarse)	100	13	60-110
	M(Medium)	70	9	52-100
	F1(Fine)	50	9	50-95
	F2(Extra Fine)	20	6	45-90
HPT200	C2(Coarse)	185	19	145-250	160	160	2135×1750×1927
	M(Medium)	125	16	135-235
	F1(Fine)	95	13	115-220
	F2(Extra Fine)	75	10	90-190
HPT300	C1(Extra Coarse)	230	25	220-440	220	250	2725×2110×2871
	C2(Coarse)	210	19	190-380
	M(Medium)	150	16	175-320
	F1(Fine)	105	13	145-280
	F2(Extra Fine)	80	10	110-240
HPT400	C1(Extra Coarse)	295	30	300-630	315	315	2775×2370×2295
	C2(Coarse)	251	25	285-560
	M(Medium)	196	20	250-490
	F1(Fine)	110	13	180-345
	F2(Extra Fine)	90	10	135-320
HPT500	C1(Extra Coarse)	330	38	425-790	400	400	2800×3480×4050
	C2(Coarse)	290	30	370-700
	M(Medium)	210	22	330-605
	F1(Fine)	135	16	270-535
	F2(Extra Fine)	95	13	220-430
HPT800	C1(Extra Coarse)	350	38	570-1200	630	630	3970×3345×4235
	C2(Coarse)	299	32	520-1050
	M(Medium)	265	25	475-950
	F1(Fine)	220	16	370-800
	F2(Extra Fine)	150	13	310-600
