Features
Â
Â

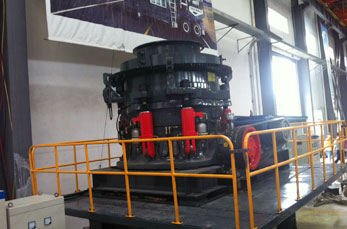

HPT cone crusher has the same structure and the same crushing theory as traditional HPC cone crusher. But HPT cone crusher strengthens the performance of driving device and sealing service. And the structure is much more compact, the control system is much more intelligent.
Â
HPT series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.
| Model | Cavities | Feed opening (mm) | Minimum discharging size (mm) | Capacities (t/h) | Nominal installed power (kw) | Maximum installed power (kw) | Overall dimension (mm) |
| HPT100 | C1(Extra Coarse) | 140 | 19 | 75-140 | 90 | 90 | 1705×1510×1583 |
| C2(Coarse) | 100 | 13 | 60-110 | ||||
| M(Medium) | 70 | 9 | 52-100 | ||||
| F1(Fine) | 50 | 9 | 50-95 | ||||
| F2(Extra Fine) | 20 | 6 | 45-90 | ||||
| HPT200 | C2(Coarse) | 185 | 19 | 145-250 | 160 | 160 | 2135×1750×1927 |
| M(Medium) | 125 | 16 | 135-235 | ||||
| F1(Fine) | 95 | 13 | 115-220 | ||||
| F2(Extra Fine) | 75 | 10 | 90-190 | ||||
| HPT300 | C1(Extra Coarse) | 230 | 25 | 220-440 | 220 | 250 | 2725×2110×2871 |
| C2(Coarse) | 210 | 19 | 190-380 | ||||
| M(Medium) | 150 | 16 | 175-320 | ||||
| F1(Fine) | 105 | 13 | 145-280 | ||||
| F2(Extra Fine) | 80 | 10 | 110-240 | ||||
| HPT400 | C1(Extra Coarse) | 295 | 30 | 300-630 | 315 | 315 | 2775×2370×2295 |
| C2(Coarse) | 251 | 25 | 285-560 | ||||
| M(Medium) | 196 | 20 | 250-490 | ||||
| F1(Fine) | 110 | 13 | 180-345 | ||||
| F2(Extra Fine) | 90 | 10 | 135-320 | ||||
| HPT500 | C1(Extra Coarse) | 330 | 38 | 425-790 | 400 | 400 | 2800×3480×4050 |
| C2(Coarse) | 290 | 30 | 370-700 | ||||
| M(Medium) | 210 | 22 | 330-605 | ||||
| F1(Fine) | 135 | 16 | 270-535 | ||||
| F2(Extra Fine) | 95 | 13 | 220-430 | ||||
| HPT800 | C1(Extra Coarse) | 350 | 38 | 570-1200 | 630 | 630 | 3970×3345×4235 |
| C2(Coarse) | 299 | 32 | 520-1050 | ||||
| M(Medium) | 265 | 25 | 475-950 | ||||
| F1(Fine) | 220 | 16 | 370-800 | ||||
| F2(Extra Fine) | 150 | 13 | 310-600 |
