HPLC System

Listing ID #6196908

Get Latest Price

MOQ 1 Piece
TypeHPLC System
Payment TermsNEFT, IMPS, DD, D/P, T/T, Other
Power Input85 to 264V AC, 47 to 63 Hz, 60 Watts.
Weight – Pump7.3 Kgs.
Supply Type Exporter, Supplier, Importer
Preferred Buyer Location All over the world

View More Details

Product Details

Type HPLC System
System Connections - Pump 1/16” Capillaries
Dimensions – Pump 410 x 180 x 270 mm.
Power Input 85 to 264V AC, 47 to 63 Hz, 60 Watts.
Payment Terms NEFT, IMPS, DD, D/P, T/T, Other
Display 320 mm.
Precision - Pump 0.25% from 0.1 mL/min to 10 mL/min. at 20oC//0.25% from 0.05 mL/min to 4 mL/min. at 20oC (Micro)
Accuracy - Pump +/- 1% or +/- 2µl/min, whichever is greater// +/- 1% or +/- 1µl/min, whichever is greater (Micro)
Brand Name VSI
Pmax – Pump Pmax
Weight – Pump 7.3 Kgs.
Control Standalone mode using front panel
Flow Rate Settings - Pump 0 – 0.10 mL/min. 0.001 inc.//0.10 – 0.90 mL/min. 0.010 inc.//1.0 mL/min. + 0.10 inc.

VSI Electronics Private Limited is an established manufacturer, supplier and exporter of HPLC System from India. HPLC System offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting.

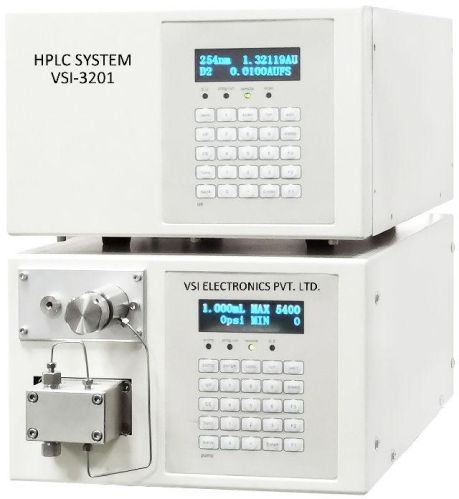

HPLC System (High Pressure Liquid Chromatography System), VSI-3201 is an isocratic system with high pressure solvent delivery pump, Multi-wavelength UV Detector, Sample inject valve Rheodyne 7725i. LC Column (USA) with work-station software. Wavelength range 190-700nm, Wavelength accuracy +/-1nm, spectral bandwidth 8nm, flow cell volume 8 micro litre, optical length – 10nm.

SALIENT FEATURES

Self-priming pump head requires no manual priming
Patented “Floating Pump Seal” designed for extended seal Wear
Available with Micro, Analytical, Semi-prep, and Prep Pump Heads
Programmable solvent compressibility compensation
Easy maintenance and Service for all wetted parts
Integral prime/purge assemble for quick solvent change
Sample inject valve Rheodyne 7725i
LC Column (USA) with work-station software
Multi-wavelength UV Detector
Wavelength range 190-700nm
Wavelength accuracy +/-1nm
Flow cell volume 8 micro litre
Spectral bandwidth 8nm
Optical length – 10nm

Note: Appearance & Specifications are subject to change due to continuous development.

Technical Specifications Of HPLC System

Wavelength	190-700 nm.
Spectral Bandwidth	6 nm
Wavelength Accuracy	<= +/- 1 nm.
Wavelength Reproducibility	<= +/- 0.5 nm.
Flow Pool Volume	10 µl
Optical Path	10 mm
Dynamic Noise
Static Noise
Dynamic Drifting
Static Drifting
Qualitative Repeatability	RSD
Quantitative Repeatability	RSD
Dimensions – Detector	160H X 260W X 350D (mm.)
Weight – Detector	6 Kg.
Minimum Detection Concentration
Standard Accessories	Rheodyne Injector 7725 I (USA)// Micro Syringe// Column C-18// Software CD// Filters// Instruction Manual

Additional Information

Port of Dispatch MOHALI
Delivery Time Ready Stock or within 1-2 weeks
