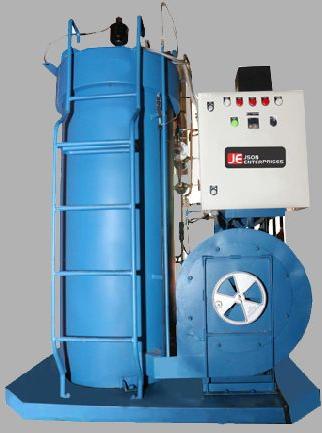

JSON BOILER Hot Water Generator

Listing ID #3890045

Get Latest Price

EfficiencyOverall efficiency of 93% on NCV of fuel without Heat Recovery Unit.
Brand NameJSON BOILER
Temperature50-90 Deg. C
IBR ApprovedNo
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Efficiency Overall efficiency of 93% on NCV of fuel without Heat Recovery Unit.
Brand Name JSON BOILER
Burner Own make / imported combustion concept make pressure jet type, continous moduling, fully automatic
Temperature 50-90 Deg. C
Fuel Diesel, Oil, Gas, Heavy Oil, Furnace Oil, Biodiesel, Wood & Coal Fire
IBR Approved No
Capacity 50,000 Kcal/hr - 10,00,000 Kcal/hr

Json, hot water generators consist of a shell and tube type heat exchanger which is duly insulated to prevent radiation losses. The ventilation blower fitted alongside blows fresh air over the combustion chamber and the set of smoke tubes. In oil / gas fired options, an imported mono-block type fully automatic burner is provided for combustion of fuel.

Hot water Generators can also be offered in solid fuel firing options. A dust-proof, pre-wired control panel is also supplied as a standard supply to control the operation of the unit based on customer requirements.

HOT WATER GENERATOR APPLICATION

Textile Industries
Hotel Industries
Powder Coating
Food Industries
Paper Industries
Sugar Industries
Pharmaceutical Industries
Hospitals & Institues

Detail	Units	JHW-50	JHW-100	JHW-200	JHW-400	JHW-600	JHW-800	JHW-1000
Head Output	Kcal/Hr	50000	100000	200000	400000	600000	800000	1000000
Outlet Temp (Max.)	"C	90	-	-	-	-	-	-
Fuel Consumption	Kg/Hr	-	-	-	-	-	-	-
	Diesel/L.D.O.	2.5	4.5	16	32	45	65	85
	Gas/L.P.G.	2.0	3.5	14	28	40	56	70
	Wood	14	25	50	100	150	200	275
Thermal Efficency	%	Diesel & Gas 95%, Wood 75%
Burner Control		On/Off				High/Low
Electric Supply		220 Volt Single Phase			415 Volt, 3 Phase
Water Pump Motor	KW	0.75	1.5	2.25	3.75	5.5	7.5	11.25
Blower/Burner Motor	KW	0.37	0.37	0.75	1.5	2.25	3	3.75
Total Electric Load	KW	1.125	1.87	3.75	6	8.63	12.75	16
Overall Dimension	LxWxH	1500x1200x1500	1500x1200x1500	1500x1200x1500	1700x1500x1300	2000x1600x2700	2200x1650x3000	2500x1750x3500
Dry Weight (Approx.)	KG	400	600	850	1300	1800	2200
