Contact SupplierOur company is a well-known Supplier of Horizontal Toggle Clamps in Mumbai. Our company provides high-quality Horizontal Toggle Clamps to our clientele. We ensure timely deliveries of Horizontal Toggle Clamps so as to meet the client needs effectively. Our Horizontal Toggle Clamps come with numerous attractive features with some of them being as follows:

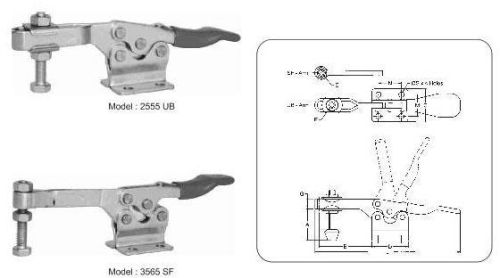

Features of Horizontal Toggle ClampsSpecifications
Item Code | Models | A | B | Mounting Base | E | G | L | Mounting Dimensions | Holding capacity | Wt. In kgs | |||
C | D | M | N | ØS | |||||||||
12501 12502 | PH – 1525 UB PH – 1525 SF | 15 | 25 | 27 | 24 | M5 | 8 | 85 | 17 | 13 | 4.5 | 50 kg. | 0.04 |
12503 12504 | PH – 2555 UB PH – 2555 SF | 25 | 55 | 33 | 35 | M6 | 12 | 150 | 21 | 21 | 4.5 | 150 kg. | 0.15 |
12505 12506 | PH – 3565 UB PH – 3565 SF | 35 | 65 | 37 | 38 | M8 | 13 | 175 | 23 | 25 | 6.5 | 250 kg. | 0.26 |
12507 12508 | PH – 45105 UB PH – 46105 SF | 46 | 105 | 64 | 57 | M10 | 21 | 290 | 37 | 41 | 8.5 | 350 kg. | 0.56 |
12509 12510 | PH – 56125 UB PH – 56125 SF | 56 | 125 | 60 | 65 | M12 | 25 | 310 | 44 | 41 | 8.5 | 500 kg. | 0.88 |
