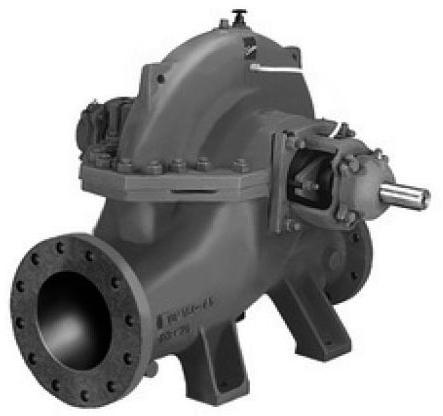

Horizontal Split Casing Pumps

Listing ID #375920

We are a prominent Horizontal Split Casing Pumps Manufacturer and Supplier in India. These Horizontal Split Casing Pumps are horizontal axially split casing, single stage, double suction or single suction, single volute or double volute type pumps with horizontal shaft. The Horizontal Split Casing Pumps can be availed from us at the most competitive prices. These are horizontal axially split casing, single stage, double suction or single suction, single volute or double volute type pumps with horizontal shaft. Special Features :

• Rotating assembly accessible for inspection or maintenance by removing upper half casing without disturbing suction and delivery piping and motor
• Horizontal execution ( standard ) or vertical execution ( optional)
• Vertical pump, direct drive or with universal shaft arrangement
• High hydraulic and overall efficiency due to superior design and manufacturing techniques
• Good suction performance and low NPSH
• Stable characteristics, minimum maintenance required, vibration free performance
• High reliability

Pump Casing : Horizontal axially spilt volute type, suction and discharge nozzles and supporting feet are cast integral with lower half casing. Impeller : Double or single suction type accurately balanced. In case of double suction impellers, the hydraulic thrust is balanced automatically because of pressure equalization on both sides of the impeller. Shafts : The high tensile steel shaft accurately machined and ground is supported by antifriction bearings. The shaft is protected by shaft sleeves from wear in stuffing box area. Stuffing Box : Can be sealed by gland packing or by mechanical seal and is suitable for liquids having temperature up to 90oC. Bearings : Grease Lubricated deep groove ball I roller bearings are provided. Large pumps can be provided with Oil Lubricated / Oil ring bearings. Direction Of Rotation :

• Standard : Anticlockwise ( ACW ) when viewed from driving end
• Optional : Clockwise ( CW ) when viewed from driving end

Drive : Suitable for coupling with electric motors, engines or steam turbines either directly or through belt drives, gear boxes etc. Flanges :

• Standard : Drilled to BS : 10 Table D/E/F or BS-4504,Table PN16 plain face depending upon model
• Optional : DIN / ASA with suitable pressure rating depending upon model
