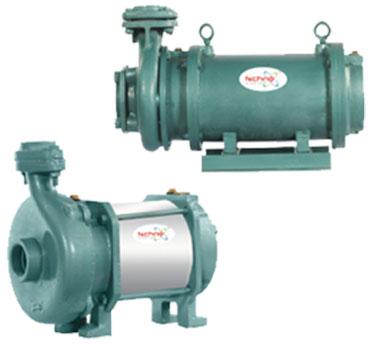

Horizontal Openwell Pumps

Listing ID #3948579

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product features Easy to install Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft. The open well submersible monoblock can be....

View More Details

Send Enquiry

Product Details

Product features

Easy to install
Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.
The open well submersible monoblock can be placed at the bottom of the well.
This arrangement does not require suction pipe.
Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
Water can also be drawn from a bore well which is bored at the bottom of the open well by inserting a suction pipe into the bore well and providing a cooling tank arrangement to keep the monoblock submerged in water.

Applications

Irrigation
Drinking water supply
Industrial water supply
Cooling water circulating systems

Technical Data

Power (H.P.)	Single Phase	0.5 HP - 3.0 HP
	Three Phase	1.0 HP - 40 HP
Versions	Single Phase	240 volts +6% -15% 50 Hz DUTY S1
	Three Phase	415 volts +6% -15% 50 Hz DUTY S1
Speed ( N )	2880 RPM
Discharge Range ( LPM )	Single Phase	20 LPM - 650 LPM
	Three Phase	50 LPM - 2800 LPM
Head Range ( Mtrs )	Single Phase	10 - 35 Mtrs
	Three Phase	20 - 70 Mtrs
Pipe Size ( MM )	Single Phase	32 X 25, 40 X40
	Three Phase	40 X 40, 50 X 40, 65 X 50, 75 X 65 75 X 75, 100 X 75, 100 X 100
