We are ranked among responsive and responsible Manufacturers, Exporters and Suppliers of a wide range of Horizontal High Pressure Cylindrical Steam Sterilizer. Reckoned for their ultramodern technologies, our Horizontal High Pressure Cylindrical Steam Sterilizer is precision-engineered, functions optimally and guarantees long service life. Buyers can get Horizontal High Pressure Cylindrical Steam Sterilizer from us at completive prices and expect timely delivery.

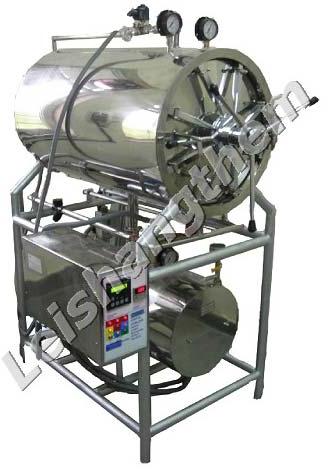

About Horizontal High Pressure Cylindrical Steam Sterilizer :

• The radial locking lid is made of thick S.S. plate
• All units are hydraulically tested up to 40psi
• The inner chamber, steam jacket, outer chamber and boiler are made of heavy gauge stainless steel with leak proof argon arc welding
• Steam boiler is fitted with water level indicator, pressure gauge, low water cut-off device and automatic pressure control device.
• The unit is provided with a positive self-locking safety door which cannot be opened while the chamber is under pressure and disengages automatically when chamber is exhausted. This affords complete safety to the working personnel against explosive opening.
• The space between the outer chamber and steam jacket is filled with asbestos sheet or glass wool to minimize thermal losses.
• Fitted with a Digital Temperature Indicator to indicate inner temperature, vacuum breaker to break vacuum in case of formation of vacuum due to steam condensation.
• The chamber discharge line is fitted with a moisture trap to absorb the condensate automatically thus preventing moistening of the loaded material to be sterilized.
• The unit is fitted with all standard accessories such as Automatic Pressure Control Switch and Automatic Low Water Cut-Off Device.
• Two separate valves are provided for evacuating steam from inner chamber and jackets as and when desired.
• Sterilization Cycle is controlled by Single Point Multiport Valve.
• To work on 440 volts, 3 phase supply.

Features :

• Steady performance
• Noise free performance
• Easy to operate and maintain
• Wide application
• Cost efficient
