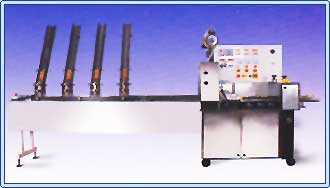

Horizontal flow wrap machines

Listing ID #2013098

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

This Model is suitable to pack products in 1/2/3/4/5 piles of biscuits. The same Model can also be used for paking tray type or for Pre-wrapped Products. Lug carries required number of products from the magazine and arrives to the forming box. The wrapper is wrapped around the forming box. Fin seal at bottem is completed by three pair of rollers out of which one pair is for pre heating, second for heating and third for propelling purpose, which controls the wrapper around the periphery of the product. The crimping jaws makes cross sealing at two ends and seperation as required, such packets are delivered to the out feed conveyor.

Automatic self contained unit.
		All components coming in contact with product are of stainless steel or Food Grade plastic.
		Ease of change over to differnt varieties of product in minimum time.
		A.C. motor with variable frequency Inverter Drive.
		Separate Temperature Controllers are provided for each pair of Heating rollers and jaws.
		Cut off Length adjustment by just rotating wheel with Display.
		Simple to operate and easy to maintain.

DESCRIPTION	abm/ CP/180
PRODUCT WIDTH MIN MAX	35 M.M. 65 M.M.
PRODUCT HEIGHT MIN MAX	35 M.M. 65 M.M.
PRODUCT LENGTH MIN MAX	40 M.M. 150 M.M.
WRAPPER CUT OFF LENGTH MIN MAX	75 M.M. 350 M.M.
MAXIMUM REEL WIDTH	280 M.M.
MAXIMUM REEL DIAMETER	300 M.M.
MAIN MOTOR	0.75 KW
HEATING	3.0 KW
MECHANICAL SPEED DEPENDING UPON PRODUCT (PACKETS PER MINUTE)	180 PACKETS PER MIN.
