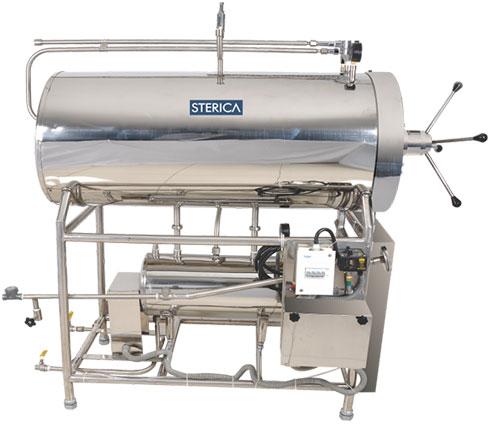

Description
Triple walled unit- the sterilizer consists of a chamber with steam jacket and outer insulation cover
Door: Single Door hinge type with radial locking system
Door Gasket: Expandable type Silicone rubber gasket, withstands up to 140°C
Material of Construction – Steam Sterilizer Chamber, Jacket, Door, Radial Locking Arm, Outer Insulation Cover, Pipelines, Steam Generator all are made out of heavy gauge SS 304316 grade Stainless Steel
Standard features: Multiport valve, vacuum drying, chamber condensate line with steam trap & chuck valve, dial thermometer, pressure gauges for steam generator and jacket, compound gauge for chamber, sight glass, stainless steel perforated tray, expandable silicone gasket
Working Pressure: 1.2 kgfcm & 2.1kgfcm
Power Supply: 440 V, 3 Phase, 50 Hz AC Supply
Working Temperature: 121°C 134°C
Safety devices: Pressure switch, safety valves, self locking of door when chamber is under pressure, vacuum
