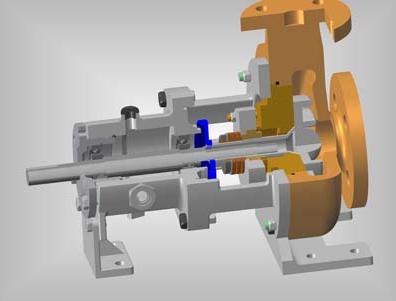

Horizontal Centrifugal Pump

Listing ID #4126625

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

CHEMTROL FRP Pump series in India’s FIRST standard pump design non-metallic construction i.e. FRP developed to replace conventional alloy steel, lined and plastic construction pumps. The lower....

View More Details

Send Enquiry

Product Details

CHEMTROL FRP Pump series in India’s FIRST standard pump design non-metallic construction i.e. FRP developed to replace conventional alloy steel, lined and plastic construction pumps.

The lower RPM advantage in our anticorrosive pumps are not there since maintenance is due to corrosion and not due to normal wear and tear. Hence the FRP pumps on 2900 RPM are most economical as compared to other on 1440 RPM. The wetted components of these pumps viz Casing, Casin Back Cover, Impeller, Impeller nut and Gland Pusher are of solid Moulded, Joint less, Composite structures of Fiberglass Reinforce Polyester Resin which ensure excellent resistance to corrosion and abrasion, superior impact resistance and mechanical strength.Amongst all non-metallic MOC, if we look at physical & mechanical properties, the resistance to corrosion, abrasion, temperature, mechanical strength, the superiority of FRP is proven. Moreover FRP components at times can be repaired unlike any other plastics. FRP is nothing but Fibreglass Reinforced Polyester Resin. Polyester resin being used are of Vinylester grade. Please note that polyester resin being thermo set type of plastic, these resin set permanently. This particular parameter facilitates strength as well as durability to FRP moulded components being incorporated in our FRP moulded pumps. We therefore strongly feel that FRP is the best corrosion resistant / reliable material amongst all plastics. Moreover due reinforcement of Fiberglass, the mechanical strength is better than any other non-metallic material of construction. For your perusal we are enclosing herewith “Physical & Mechanical Properties” of FRP.

The type of casing incorporated in our FRP pump is volute type, which is in line with the standard available for horizontal end suction centrifugal chemical process pumps. This particular design will not be found in other non-metallic plastic pumps available in India. The construction features of our FRP pumps can be easily compared with various Indian, as well as International standard viz. IS 1520, DIN 24256 and API 610 etc. Since our FRP pumps have volute type of casings and there by efficiency is always better than any other casing in two halves of other non-metallic pumps supported with two metallic rings.With semi-open impeller to eliminate choking problems and with back-pull-out design to facilitate easy maintenance over and above standard gland packed pumps the mechanical seal arrangement include incorporation of one composite FRP mould consisting Impeller, Impeller Nut and Shaft sleeve i.e. Threaded Impeller with embedded sleeve. This particular feature renders absolutely leak-proof arrangement thereby preventing liquid penetration towards shaft. Hence this avoids incorporation stly alloy shafts. Moreover gland plate for holding mechanical seal is also offered in FRP construction. Easy external adjustment of impeller providing compensation for wear and ensuring consistent performance.Low weight to dimension ratio ensuring smooth and vibration free performance even in large sizes run at high speeds.

Maximum parts interchangeability reducing spares inventory. Since only one model is quoted for all parameters with parallel installations.

Heavy-duty bearings provide for smooth and cool operation even at higher speeds. The oil-sump in bearing housing is larger and stores more quantity of oil for efficient lubrication and cooling.

Company Details

‘CHEMTROL INDUSTRIES’ is the first Manufacturer of FRP Moulded Centrifugal chemical process pumps in India and now establish the entire range of pumps in major Public as well as private sectors undertaking with leading consultant approval.
Amongst all non-metallic MOC. Fiber Glass Mouldings in Vinyl ester resins possesses the highest mechanical , Corrosion, abrasion and temperature resistance. It goes without saying that this is the superior MOC. Vinyl ester resins are produced by addition of Athletically Unsaturated Memo-carboxylic Acids to epoxy resins. Since unsaturated terminal, the carbon-to-carbon double bonds are extremely reactive which cure consistently and faster to provide better creep resistance & green strength. Having much lesser Ester linkage it provides higher resistance to Hydrolysis. This provides high Chemical Resistance. Low shrinkage, Better adhesion, High temperature resistance etc. properties.
You might be aware that amongst all Non-Metallic or Engineering plastics basically there are two types, one is Thermoplast type Resins and the other one is Thermosetting type Resins. The Thermoplast resins are being used in manufacturing MOC like PP, PVC, HDFC, UHMWPE etc., where as in FRP (GRP) mouldings are Thermosetting type resins. The thermoplast type resins over a period of time losses it’s properties like getting D shaped, loosing color, getting cracked etc. where as in Thermosetting resins (FRP or GRP) sets permanently and the above stated changes of thermosetting resins never occurs with this. Also the Chemical Resistance, Corrosion, Abrasion, Impact and Temperature resistance is always better amongst all engineering plastics and is immune to atmospheric degradation and oxidization. Further the components like casing, impeller, casing back cover can be reconditioned by remolding and machining which is not possible in other plastic pumps.
The unique wetted component casing is volute type with contoured discharge leads the pumps to energy efficiency. There are no thru studs/nuts connecting casing and casing back cover which is expose to corrosive atmosphere. The threaded impeller with embedded shaft sleeve of single composite structure of FRP eliminates the gasket sets there by prevention of liquid penetration towards shaft.
The drive assemblies are divided in to three groups in Horizontal Pumps leads to the maximum interchangeability of spares.
The unique Fibre Glass Moulding Process is in-house to meet the mechanical strength and other properties in comparison with metallic Pumps.
The special purpose pumps are developed to meet the customer requirement and generally offered the following Quality Assurance Plan. (QAP)
