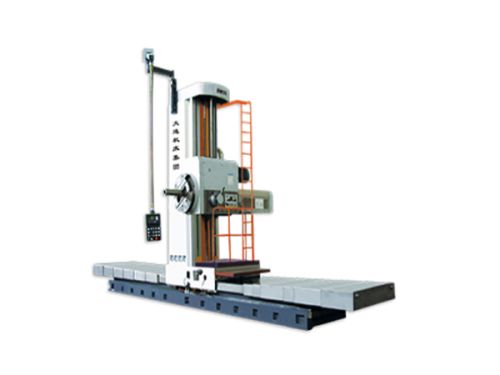

Horizontal and Milling Boring Machine

Listing ID #4293121

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Spindle of better rigidity, stronger cutting force, higher efficiency. Convenient hydraulic pre-select gear change system Optical sensor available for higher table locating accuracy DRO available for both X and Z axis Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper.

View More Details

Send Enquiry

Product Details

Items	Unit	TPX6111	TPX6111A	TPX6113
Spindle bore diameter	mm	110	110	130
Spindle taper	MT	6	6	80mm
Max. spindle axial thrust	Nm	1225	1225	3136
Max. spindle axial thrust	N	12250	12250	31360
Steps of spindle speed		22	22	24
Range of spindle speeds	r/min	8-1000	8-1000	4-800
Power of main motor	kW	7.5	7.5	15
Max. facing head torque	Nm	1960	1960	4900
Facing head diameter	mm	630	630	750
Range of facing speeds	r/mm	4-200	4-200	2.5-125
Steps of facing head speeds		18	18	18
Table size	mm	1140x1000	1140x1000	1600x1400
Max. work load	kg	2500	2500	8500
T-slot	mm	22	22	28
Number of T-slot		10	10	10
X-axis travel	mm	1000	1350	1600
Y-axis travel	mm	1000	1000	1500
Z-axis travel	mm	1000	1000	1500
W-axis travel (spindle travel)	mm	600	600	900
U-axis travel (facing head spindle travel)	mm	180	180	250
B-axis rotary workable		360	360	360
Min. distance between spindle center and table surface	mm	0	0	0
Rapid travel (X/Y/Z/W)	mm/min	2500	2500	2500
Range of feed per sindle revolution	mm/rev	0.04-6/0.01-1.88	0.04-6/0.01-1.88	0.05-8/0.01-2
Linear measurement accuracy	mm	0.005	0.005	0.005
B-axis measurement accuracy	mm	0.001	0.001	0.001
Overall dimensions	mm	4900x2554x2850	4910x2990x2850	6995x3730x3535
Machine weight	kg	13300	14800

Company Details

Well-Win Machinery is a global Manufacturer and Exporter company that specializes in the sales of Flat Bed CNC Lathes, CNC Milling and Boring Center, Conventional Lathe, Drilling Machine, Machining Center, Heavy Duty Lathe Machine, Shaping Machine, Milling Machine, Planer, Radial Drilling Machine, Pillar Drill Machine, Air Compressor, Power Tools and complete manufacturing facilities. Specialties include Hydraulic Hacksaw, Hydraulic Press, Surface Grinder, Slotter, 4 Jaw Independent Chucks, Air Compressor, Invertor and many more.
Well-Win Machinery Consultant is professionally managed company, since more than three decades, dealing with various kinds of industries for their requirement of sale - purchase of complete industrial units and act as a mediator to provide right solution as per need. Our valued customers deserve personal and knowledgeable attention & we are dedicated to providing that by excellent mediate service in selling & buying of small to large, manual to CNC, individual machinery to complete industrial plant.
We can supply any large size as well as medium size machine Tools as per client requirement from our ready stock or import it from our various sources abroad.
