1Kva -3Kva Double Conversion Ups, for Control Panels, Color : White

Listing ID #2544266

Get Latest Price

ColorWhite
Frequency50Hz
Automatic GradeAutomatic
Driven TypeElectric
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location India ( Karnataka only ) & All other countries

View More Details

Product Details

Color White
Frequency 50Hz
Automatic Grade Automatic
Driven Type Electric
Type Home Ups
Brand Name Hitachi
Application Control Panels
Weight 10-15Kg

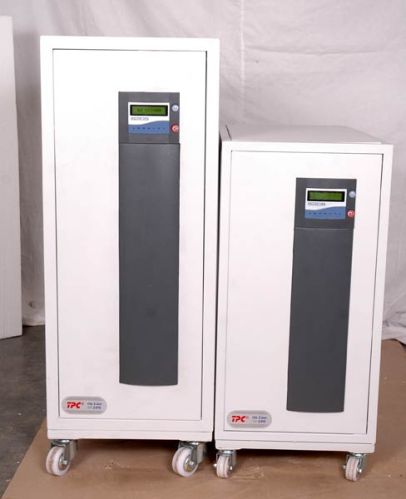

Eco-Smart LP Series (Range- 1Kva -3Kva)
This series is a low power online Double conversion UPS. With power factor correction upto unity. This UPS is having built in static bypass and software compatibility and SNMP compatibility also. Superior Surge Protection Circuit Is Built In at the Input End.
Transformer less high frequency design facilitates you to install required power with minimum foot print, because of PFC charger it works with better efficiency and requires less peak power compare to conventional Online UPS and minimizes your electricity bill.
The standard UPS is coming with inbuilt Static bypass allows you to go for hot standby with out additional circuitry. This is an economic and eco- friendly UPS suitable for small office, diagnostic centers, online booking counters and internet surfing centers etc.,

Specifications

Capacity	1KVA-3KVA(1Ph-1Ph)
Technology	PWM Technology with High Frequency Switching Type.
Input	Voltage : 170Vto 270VAC Frequency : 50Hz+/- 5Hz. Power factor : 0.99( PFC)
Output	Voltage : 225V. Frequency : 50Hz+/- 0.1Hz. Regulation : 225V+/- 1%.
Waveform	Pure Sine Wave.
Efficiency	Above 90%( overall.)
Distortion	Less than 3% for linear load and lessthan 5%for non linear load.
NoiseLevel	Lessthan 45dB.
With standing Capacity	150% Over Load for 60 sec.
Type of Cooling	Forced Air Cooling
Charging	SMP Swith CVCC.
Load Crest Factor	3:1
Battery (Type)	Tubular / SMF
Backup Provisions	15 Min. to 4 Hours
Battery Voltage	36 V to 96Vdc.
Recharging Time	8 to 12 Hours
Display	LCD display for all parameters
Indications	Mains ON/ Inverter ON/ Inverter Trip / Battery Low. / Inverter U/V-O/VTrip.
Alarms	Battery Low, Over Load, Inverter trip
Protections	Input : Mains Over Voltage / Under Voltage / Spikes/ Surges. Battery : Over Charge/ Low Voltage. Output : Over Voltage / Over Load / Short Circuit.
Special Features	Static Switch / Software Interface

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Total Power Conditioners Pvt Ltd., Started in 1999 and is a leading manufacturers of Solar PCU , solar UPS , SOlar Charger , Solar Inverters , UPS , ONLINE UPS, battery chargers and Servo Controlled Voltage Stabilizers.
