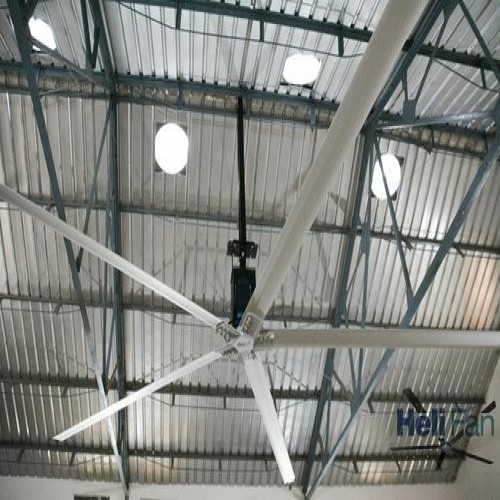

We supply the best efficient and quality product, varient from 8feet to 24feet in diameter.
Fans installed in spaces like warehouses, barns, hangars and distribution centers can prevent heat stress, increase worker comfort and the productivity of both workers and livestock. Typical commercial applications include shopping malls, churches, office buildings, fitness centers and schools.
It cost less than 1.5 KW hour and it will improve the air flow and create more cooler and comfortable working environment for upto 25,000 sq.ft.
| Fan Size | 3.7m/12 Ft | 4.9m/16 ft | 6.1 m/20ft | 7.3 m/24 ft |
| CFM | 131200 | 1,78,530, | 323449 | 389746 |
| POWER | 0.75kw(1hp) | 1.1 kw(1.5hp) | 1.5kw (2hp) | 1.5 kw (2 hp) |
| AMPs | 2.5 amps | 3.4 amps | 6.2 amps | 6.2 amps |
| RPM | 103 | 70 | 60 | 53 |
| WEIGHT | 115 kgs | 128 kgs | 148 kgs | 158 kgs |
| Fan Size | 3.7m/12 Ft | 4.9m/16 ft | 6.1 m/20ft | 7.3 m/24 ft |
| Installed Height |
7m | 8m | 12m | 18m |
| 40ft | 7.5m | 9m | 12m | 19m |
| 35ft | 8m | 10m | 14m | 21m |
| 30ft | 9m | 11m | 16m | 23m |
| 25ft | 1m | 128 kgs | 18m | 25m |
| Area Covered at 18 ft | 4,500 sq ft | 6,500sq.ft | 15,000 sq,ft | 25,000sq.ft |
