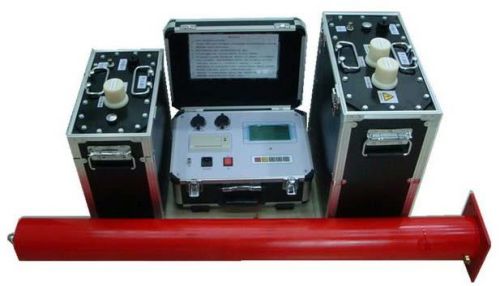

High Voltage Cable Tester

Get Latest Price

Output frequency0.1Hz0.05Hz0.01Hz
Power Fuse25 A
Power supplyC50 Hz 220V ±5%
Accuracy± (3% of full scale +0.5 KV)
Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Myriad Industrial Solutions LLP

Dahisar, Mumbai, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer
GST No. 27AAZFM0054B1ZB

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Accuracy± (3% of full scale +0.5 KV)
Power Fuse25 A
Power supplyC50 Hz 220V ±5%
Voltage waveform distortion≤5%
Temperature-10+40 humidity ≤85%RH
Output frequency0.1Hz0.05Hz0.01Hz
Loading capability0.1 Hz maximum 0.6µF, 0.05 Hz maximum 1.2µF, 0.02 Hz maximum 3.0µF
Condition of useindoor, outdoor

We offer High Voltage Cable Tester that is fully computer controlled. It is used as a pass or fail test for cables. Small size, lightweight, large screen LCD, test report, and easy usage are the prime highlights of our High Voltage Cable Tester. Available at very feasible prices, High Voltage Cable Tester comes in different specifications to suit all the requirements of our customers.

Highlighting Features :

Data of current and voltage are obtained directly through the sampling of High-Voltage side and it is true and accurate.
Over-voltage protection: the instrument will shut down to protection within 20 ms when the output voltage is exceeding limiting values of setting.
Over-current protection: designed for dual protection of high and low voltage, downtime protection can be accurately set in high-voltage side. Shut down to protection times is within 20 ms when the current of low-voltage sides exceeds reacted current.
High-voltage output protection resistor design in inbuilt and there is no need of additional external resistor.
