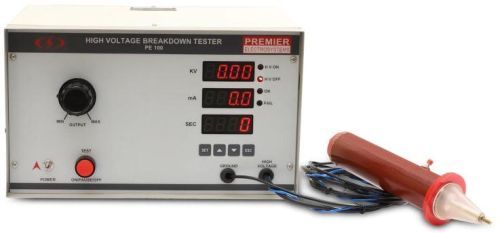

Model : PE 100
Test Voltage : 0 – 3/ 5/ 10 KV AC continuously adjustable by Dimmer.
Display : 4 digit LED display
Resolution : 0.01 KV
Accuracy : 0.6% +/- 1 count
Test Current : Up to 30 mA/ 100 mA digitally adjustable through keypad
Display : 4 digit LED display
Resolution : 0.1 mA
Accuracy : 0.6% +/- 1 count
Timer : Programmable Digital Timer
Timer Range : 0 – 9999 Sec/ Min/ Hour , Settable by membrane key switches on front
Facilities :
1. Single button operation for HV ON, HV OFF, Test Pause and Test Resume
2. LED Indication of HV On, HV Off, Product OK, Product Fail
3. Buzzer programmable for On during HV ON or Alert when Test Fail
4. Remote start switch for momentary on
5. Memory : Auto restart on power failure- Same test voltage, same set point and timer resume (To be specified)
Power : 230 V AC + 10%, 50 Hz
Calibration : Traceable to NABL
Warranty : 1 year

Model : PE 100
Test Voltage : 0 – 3/ 5/ 10 KV AC continuously adjustable by Dimmer.
Display : 4 digit LED display
Resolution : 0.01 KV
Accuracy : 0.6% +/- 1 count
Test Current : Up to 30 mA/ 100 mA digitally adjustable through keypad
Display : 4 digit LED display
Resolution : 0.1 mA
Accuracy : 0.6% +/- 1 count
Timer : Programmable Digital Timer
Timer Range : 0 – 9999 Sec/ Min/ Hour , Settable by membrane key switches on front
Facilities :
1. Single button operation for HV ON, HV OFF, Test Pause and Test Resume
2. LED Indication of HV On, HV Off, Product OK, Product Fail
3. Buzzer programmable for On during HV ON or Alert when Test Fail
4. Remote start switch for momentary on
5. Memory : Auto restart on power failure- Same test voltage, same set point and timer resume (To be specified)
Power : 230 V AC + 10%, 50 Hz
Calibration : Traceable to NABL
Warranty : 1 year
