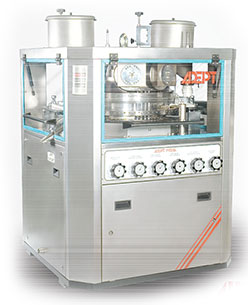

The Adept Mega Press is designed keeping in mind Adept's philosophy of providing simple and efficient solution. The Adept Mega Press not only gives a higher output but also guarantees minimum breakdown and maintenance. Special emphasis has been given on trouble free working and durability so that the machine can be used in a 24/7 working environment.

Center Drive

• The machine has true center drive, unlike the internal helical gear ring system.
• There is no worm and gear ring on the turret mechanism thereby reducing moving parts and minimising maintenance.
• Gear box is directly coupled to center shaft with a keyless coupling to ensure zero backlash.

Hydraulic Power Pack

• The compression springs are replaced by compact hydraulic power packs.
• This system also acts as an overload release mechanism and can be used to measure the applied pressure in tons.
• Pressure is applied directly on the compression axis ensuring more unifrom pressure.

Hydraulic Power Pack

• The compression springs are replaced by compact hydraulic power packs.
• This system also acts as an overload release mechanism and can be used to measure the applied pressure in tons.
• Pressure is applied directly on the compression axis ensuring more unifrom pressure.

10 Ton Pre Compression

• Adept Mega Press is designed for 10 tons pre-compression load. The pre-compression pressure is also hydraulic.
• Rollers are fitted with high load capacity bearings, which do not require continuous lubrication.
• Rollers are of double thickness to increase dwell time.
• All 8 rollers are identical and interchangeable.

Feeder System

• Machine is fitted with a 3 chamber bottom driven rotary feeder.
• The Rotary Feeder has an individual motor and A.C. Drive.
• An overflow indicator is provided in the rotary feeder to prevent jamming due to excess flow.
• The Adept Mega Press is also provided with a multi-chamber gravity feeder that is made of foodgrade polymer.
• A common hopper is designed for both Rotary and Gravity feeder.

Front Control System

• Pre-Compression Pressure, Main Compression Pressure and Weight can be set using control knobs located on front panel.
• The control knobs are calibrated and fitted with dial indicators.
• All controls are connected using universal joints eliminating chain and sprocket mechanism.

Control Panel

• Control panel is completely separate from the main machine. This prevents powder contamination.
• All machine parameters are controlled through a PLC
  - Main Motor Speed
  - Feeder Speed
  - Hydraulic Pressure Setting
  - Lubrication System
  - Safety Interlock
• The PLC also stores and displays Pressure, Tablet count, Turret RPM, Motor Ampere Product recipe and Batchdata.
