Contact SupplierRely on us for timely delivery as we are assisted with up-to-date transit facilities and logistics services. In order to ensure zero defects to the products, we have installed automated warehousing system in our spacious warehouse. The system is supervised by well-trained personnel only.
Applications :
Key Facts :

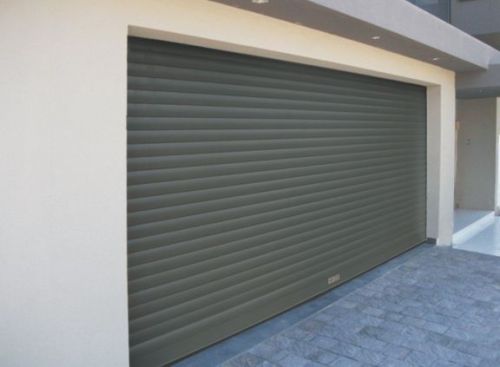

Large range of rapid closing roller shutter doors that enable quick access or quick denial to the premises which will save on energy costs, allow faster material handling, reduce the chance of impact damage and provide faster security.
Door Type | Features |
---|---|
Application | High Speed Fold Up Door |
Door Dimension | Max Heigh 8000 mm, Max Width 5000 mm |
Door Travel | Opening Speed 0.80 m/s ~ 2.5 m/s, Closing Speed 0.80 m/s ~ 2.5 m/s |
Wind Load Resistance | EN 12424 CLASS 2 or CLASS 3 |
Extrusion | - |
Curtain | 0.8-1.2mm PVC high-density coated fabric imported from French |
Door frame material | Galvanized steel, aluminium alloy, stainless steel |
Track and Box Cover | 2.0mm thick galvanized steel fold surface |
Door Curtain | Blue, yellow, orange, grey, red and other colour as you need |
Drive System | Germany SEW motor/Equivalent 380V or 220V/50Hz 0.75kw,1.1kw,1.5kw |
Control System | PLC Inverter Encoder |
Opening Way | Double-side radar, double-side press button, infrared sensors |
Transparent window | Transparent PVE film imported |
Emergency Opening | Crank handle |
