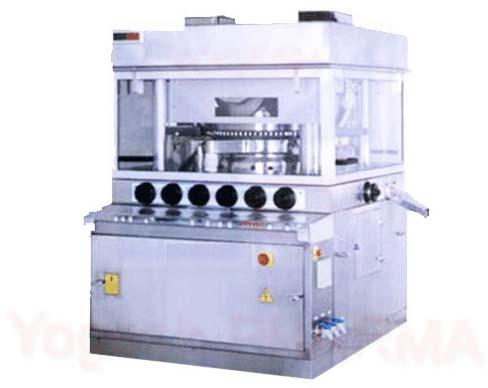

Contact SupplierHigh Speed Double Side Rotary Tableting Press with Pre-Compression for large production with Design Conforming to GMP normsSimple and convenient operation, changeover, cleanliness and easy to maintainAvailable in different Models 45 Stn. – D, 55 Stn. – B, 69 Stn. & 75 Stn. – BB Tablet compression machine with max. output of 5,40,000 Tablets/hr.Pre-Compression system to improve compressibility and tablet quality.Turret Drive from closed gear box through internal teeth gearing & Electro Magnetic Clutch.S. S. Die pot, 3 pc. Turret with lower punch sealAC Frequency Drive.All controls like tablet thickness, hardness and weight adjustment are outside and front of the machine.Hydraulic Power Pack for pressure loading and releasingFast and quick changeover and easy cleaning designClosed Front Electric Control Panel with safety guideAuto Lubrication systemOptional PLC Control Available
TYPE | Y-Mek Xpress Y -IV - 75 Stn. | Y-Mek Xpress Y - IV - 69 | Y-Mek Xpress Y - IV - 55 | Y-Mek Xpress Y -IV- 45 |
---|---|---|---|---|
No. of Stations | 75 | 69 | 55 | 45 |
Type of Tooling | BB | BB | B | D |
Output Tablets per hour. | 108000 to 540000 | 99000 to 457000 | 79000 to 396000 | 65000 to 325000 |
Max. Operating Pressure - Main | 65 kn | 65 kn | 65 kn | 100 kn |
Opert. Pressure - Pre-Pressing | 10 kn | 10 kn | 10 kn | 10 kn |
Max. Tablet Diameter | 11 mm | 11 mm | 16 mm | 25 mm |
Depth of fill | 17.5 mm | 17.5 mm | 17.5 mm | 20.5 mm |
Upper Punch Penetration | 3 to 6.5 mm | 3 to 6.5 mm | 3 to 6.5 mm | 3 to 6.5 mm |
Power (Total) | 11.7 hp | 11.7 hp | 11.7 hp | 11.7 hp |
Main Electric Motor | 10 hp | 10 hp | 10 hp | 10 hp |
Powder Feeder Motor | 0.25 hp | 0.25 hp | 0.25 hp | 0.25 hp |
