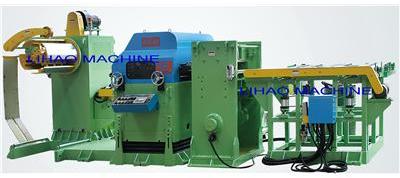

High Speed Cut to Length Line

Listing ID #3955888

Get Latest Price

Update Time03-12-2015
Terms of PaymentL/C,D/A,D_P,T/T
Good Designautomatic
Brand NameLIHAO MACHINE, SAMDUN
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Update Time 03-12-2015
Function cut metal sheet strip
Categories cut to length line
Purpose get metal sheet plates
Terms of Payment L/C,D/A,D_P,T/T
Good Design automatic
Brand Name LIHAO MACHINE, SAMDUN
Model 0.3-3mm LH-CTL-650,850,1300,1600,1800,...
OEM Manufacturer not trading company

Features of high speed cut to length line for thin coil

Compact structure and small floor space.
3 in 1 structure feeding material which is driven by YASKAWA servo motor, high straightening and feeding precision.
It sets disc brake, frequency changer and photo sensor on uncoiler, so that can start softly and feed material blandly.
Straightening rollers are made of imported bearing steel which is high hardness and good abrasion resistance.
Max. feeding speed can reach 40m/min and Max. SPM 80, can provide largest profit for customers.
Feeding direction can be set to longitudinal or transverse to save factory space.
It adopts special design instead of imported expensive equipments to save cost greatly.
Various thickness and width can be designed according to customers’ requirement.

High-speed hydraulic cutting machine feature

It is adopted hydraulic-motor drive from Italian technology, bit output torsion, and high cutting efficiency which can reach 80 times/min.
Machine frame is welded to form and then heat treatment. Work intensity is big and distortion is small so as to ensure high cutting quality.
Down-cut style design is adopted so as to protect surface of material and it is easy to stack.
It adopts imported square knifes which have hardness and good tenacity, four sides of knives can be used repeatedly.
Clearance of knives is adjustable according to thickness of material.
It is convenient to use for separated or combined purpose.
Various specifications can be made due to customers’ special demand.

Conveyor technical feature

Machine frame is welded by profile steel for portability and beauty.
t adopts two motors to drive so as to change feeding direction automatically.
It adopts rubber for roller so as to protect surface of material.
Belt, which is adopted high-intensity PVC, is durable.
It is convenient to use for separated or combined purpose.
Various specifications are acceptable due to customers’ special demand.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Shenzhen Lihao Machine Equipment Co., LTD is a professionalmachinery manufacturer in China. We produce many different machines for metal strip stampingand punching, metal sheet strip coil cutting, such as uncoiler machine,straightener, feeder, mechanical eccentric press machine, stamping mould, metalstrip cut to length line, slitting line, etc. Feeder machines include electricNC servo roll feeder, mechanical roll feeder, air pneumatic feeder, gearfeeder, grip feeder, etc. We also can design and produce non-standard machinesfor you.
We have mechanical eccentric 30tons, 45tons, and 60tons high speed precisionpress machine. We also have professional stamping mould department in our firstfactory, for designing and producingprogressive stamping moulds, such as moulds for hardware, prong snap button,jeans button, rivet, eyelet, meson, socket, terminal, fan motor cover, etc.Besides, we design and produce die cutting machine, for cutting thin material,such as plastic, leather, paper, etc.
