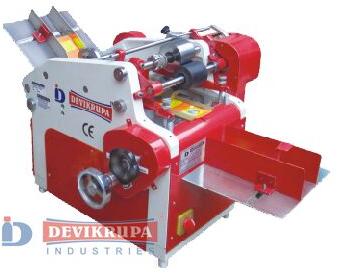

High Speed Automatic Lable Code Printing Machine

Listing ID #3805660

Get Latest Price

Power0.25 HP / 1440 RPM / 414V / 3 Phase
Label SizeLength : 50 to 200mm Width : 20 to 150mm
Dimensions(L) 686 mm (27”) (W) 520 mm (20.5”) (H) 508 mm (20”)
Net Weight85 Kgs Approx.
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Power 0.25 HP / 1440 RPM / 414V / 3 Phase
Label Size Length : 50 to 200mm Width : 20 to 150mm
Gross Weight 145 Kgs Approx
Printing Area Max. 45mm X 75mm
Use of Letters Rubber Stereo
Dimensions (L) 686 mm (27”) (W) 520 mm (20.5”) (H) 508 mm (20”)
Net Weight 85 Kgs Approx.
Output 125 / 180 / 250 Label per minute

Machine is used for printing Batch No, Mfg date:, Exp. Date: Rate and Other matter on preprinted label with different suitable speed. Machine is printing batch number with help of rubber stereo and ink.

Labels feed one by one from feed hopper with feed rubber and retard rubber adjustment. Feed rubber passes label between feed roll and pinch roll then into timing chain. The chain lugs run label in label guide to printing block, where stereo paste on printing block is print batch number with help of ink from ink roller.

Technical Specification
