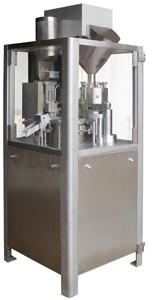

High Speed Automatic Capsule Filling Machine

Listing ID #4573566

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

description automatic capsule filling machines are the most advanced hard capsule filling equipment developed to improve the quality & speed of production. Machine complies as per....

View More Details

Send Enquiry

Product Details

description


automatic capsule filling machines are the most advanced hard capsule filling equipment developed to improve the quality & speed of production. Machine complies as per current gmp standards. It is a well versed version with much more superior electronic & new advanced loading. Separating system makes the machine suitable for capsules from any suppliers across the globe.



salient features


	compact gmp model

	machine stands superior to other machines in the market by its high speed cam dividing (indexing ) device mechanism.

	machine is equipped with complete safety and protection devices, operation is steady and credible.

	compact, sturdy, covered with stainless steel panels, hood covered with acrylic guard.

	fill weight adjustment within seconds.

	tamping mechanism' for powder filling enables capsules to be filled with minimum weight variation.

	variable ac frequency drive for speed adjustment.

	faulty capsule and filled capsule ejection stations with individual air controls.

	simple to operate and easy to maintain.

	special purpose gauges are provided for quick and easy change-over.

	appropriate sensors ensure continuous flow of powder and empty capsules for uninterrupted operation of the machine.

	the control panel of the machine is equipped with programmable logic control (plc) system enabling visual display of the operating parameters besides ensuring accuracy, reliability and reduced operator fatigue.

	working of the machine is as follows capsule loading and separation, reject capsule disposal, powder (bulk) filling, capsule closing (locking) and its ejection completely automatically.

Technical Specification

Machine Model	AICF-M	AICF-H
Production output	36000 Capsules/Hour	48000 Capsules/Hour
Filling type	Power ,Pellets ,Tablet	Power ,Pellets ,Tablet
Power Supply	3 H.P.	3 H.P.
Electrical Characteristics	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz
Vacuum	20m³/H-0.02-0.05MPA	30 m³//H-0.02-0.05MPA
Dust Absorption	1000M3/H2X105PA	1000M3/H2X105PA
Noise(DBA)	<75	<75
Overall Dimension	920mm(L) x 785mm(W) x 1900mm(H)	920mm(L) x 785mm(W) x 1900mm(H)
Net Weight	800 kgs.	800 kgs.
