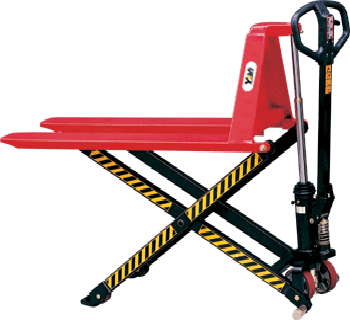

Contact SupplierExtremely easy to pump and light weight make this unit very suitable sa combined hand pallet truck and lift table.Heavy duty design: 4mm steel plate fork frame and largerd lift piston ensure the truck to reach rated capacity.Ergonomic warm handle offers you simple and comfortavle operation.
Model | () | JL5210 | JL6810 | JL5215 | JL6815 | |
Rated Capacity | (kgs) | 1000 | 1000 | 1500 | 1500 | |
Max .Lifting Height | (mm) | 800 | 800 | 800 | 800 | |
Min. Fork Height | (mm) | 85 | 85 | 85 | 85 | |
Lifting Overall Width | (mm) | 520 | 680 | 520 | 680 | |
Fork lenght | C | (mm) | 1140 | 1140 | 1100 | 1100 |
E | 600 | 600 | 600 | 600 | ||
H | 530 | 530 | 830 | 530 | ||
Battery | (Ah/v) | - | ||||
Charge | (A/V) | - | ||||
Net Weight | (kgs) | 105 | 112 | 118 | 125 |
