GENERAL INFORMATION | |

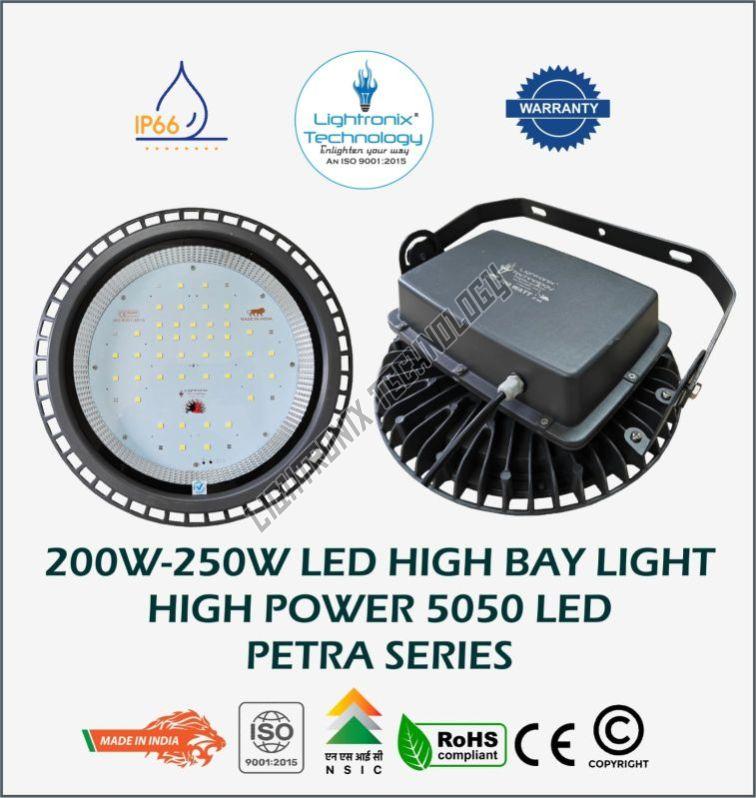

Order Code | LT-200WHBL-PETRA |
Make | Lightronix Technology |
Country of Origin | INDIA |
Lighting Source & Type | SMD 5050 LED |
Number of LED | 40 |
OPTICAL PARAMETERS | |
Led Beam Angle | 120 Degree |
CRI (Color Rendering Index) | >80 |
LED Life Span | >60000 Hours |
Color | White/Warm White/Cool White (As Per Order) |
Color Temperature | 2700-6500K(As Per Order) |
Led Voltage/Current | 6.2V/750mA |
LED Make | Bridge lux/Osram (As per Requirement) |
Optical Lens | NA |
Luminous Efficiency | 170 Lm/W |
Total Lumens | 34000(±5%) |
Optical Efficiency | >93% |
Thermal Efficiency | >90% |
ELECTRICAL PARAMETERS | |
Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
Operating Frequency | 50/60HZ |
Power Consumption | 200 Watt |
Power Factor | >0.95 |
THD | 90% |
Supply Phase | Single Phase Supply |
Over voltage Protection | 440VAC Protection |
Under voltage Protection | 90VAC |
Auto cutoff Voltage | Lower Side310VAC |
PCB INFORMATION | |
PCB Thickness | 1.6mm(±5% Tolerance) |
PCB Material | Pure Aluminum-Copper |
Copper Layer Thickness | Standard 0.35 Micron |
Copper Conductivity | >1 Watt |
PCB Size | 250X250 mm |
MECHANICAL PARAMETERS | |
Housing Material | Aluminum Pressure Die Casting |
Housing Color Type | Metal Powder Coated |
Housing Shape | Round |
Total Luminaries Weight | 5.1 Kg |
Luminaries Size | Diameter - 370 mm Height – 190 mm |
Mounting Device | Bracket |
Mounting Style | Ceiling/Roof/Hanging |
Glass Type | 4mm Toughened Glass |
Cable Entry Option | PG7 Cable Gland with Rubber Washer |
Screw Type | Stainless Steel Screw |
Gasket Type | Silicone Rubber Gasket |
IP Rating | IP65/IP66 |
Impact Rating | IK08/IK10 |
Marking Type | Laser Marking/Engraving |
