Process connectionSmooth tube for crimp adapter or hose connection
Storage temperature-20..+80°C
Media temperature0..+100°C
AdjustmentBy means of magnet
Materials, nonmedium- contactPPS, PA6.6, 1.4305
Process pressurePN 10
Ambient temperature-20..+70°C
Response timeIn water (25°C) at an average flow speed of approx. 1-2 sec.
Details :
Flow switch/transmitter for small flows in the foodstuffs industry
Combination with temperature switch or transmitter possible
No moving parts in the medium being measured
Only one medium-contact material
Simple to use
Low pressure loss
Various nominal widths
Rapid response times for a calorimetric Sensor
Linearised and temperature compensated
Characteristics :

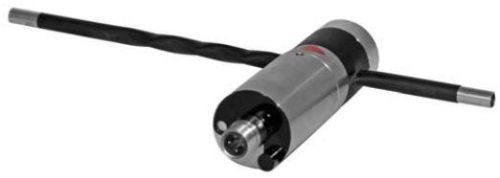

The HFK30-FIN flow sensor monitors fluid media. Its compact form combines the measurement tube and converter / counter. The integrated transducer has an analog output (4..20 mA or 0..10 V) and one switching output, which can be configured as a limit switch for monitoring minimal or maximal, or as a frequency output.
The switching output is designed as a push-pull driver, and can therefore be used both as a PNP or an NPN output. The state of the switching output is signalled with a yellow LED in the switching outlet; the LED has all-round visibility.
The sensor is configured in the factory, or alternatively this can be done with the aid of the optionally available ECI-3 device configurator (USB interface for PC). A selectable parameter can be modified on the device, with the aid of the magnet clip provided. In this case, the current measured value is saved as the parameter value. Examples of these parameters are the switching value or the metering range end value. The stainless steel electronics housing is rotatable, so it is possible to orient the cable outlet after installation.
The converter / counter record two process parameters: the flow speed of the medium and its temperature. Both parameters can be assigned to the analog output or to the switching output.
Handling and operation :
In order to ensure the sensor's maximum insensitivity to interference, the flow should run from bottom to top (best degassing even at the slowest flow speed). Standard crimp connectors, hoses with crush protection, or the crimp connectors provided by HONSBERG can be used for the connection.
The insulation hoses offer the best possible insulation against the surroundings, and must therefore not be removed.
