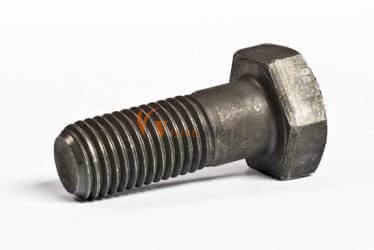

Contact SupplierBolt Diameter | D | F | C | H | |||||
---|---|---|---|---|---|---|---|---|---|
Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
1⁄2 | 0.515 | 7⁄8 | 0.875 | 0.85 | 1.01 | 0.969 | 11⁄32 | 0.364 | 0.302 |
5⁄8 | 0.642 | 11⁄16 | 1.062 | 1.031 | 1.227 | 1.175 | 27⁄64 | 0.444 | 0.378 |
3⁄4 | 0.768 | 11⁄4 | 1.25 | 1.212 | 1.443 | 1.383 | 1⁄2 | 0.524 | 0.455 |
7⁄8 | 0.895 | 17⁄16 | 1.438 | 1.394 | 1.66 | 1.589 | 37⁄64 | 0.604 | 0.531 |
1 | 1.022 | 15⁄8 | 1.625 | 1.575 | 1.876 | 1.796 | 43⁄64 | 0.7 | 0.591 |
11⁄8 | 1.149 | 113⁄16 | 1.812 | 1.756 | 2.093 | 2.002 | 3⁄4 | 0.78 | 0.658 |
11⁄4 | 1.277 | 2 | 2 | 1.938 | 2.309 | 2.209 | 27⁄32 | 0.876 | 0.749 |
13⁄8 | 1.404 | 23⁄16 | 2.188 | 2.119 | 2.526 | 2.416 | 29⁄32 | 0.94 | 0.81 |
11⁄2 | 1.531 | 23⁄8 | 2.375 | 2.3 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
15⁄8 | 1.658 | 29⁄16 | 2.562 | 2.481 | 2.959 | 2.829 | 13⁄32 | 1.116 | 0.978 |
13⁄4 | 1.785 | 23⁄4 | 2.75 | 2.662 | 3.175 | 3.035 | 15⁄32 | 1.196 | 1.054 |
17⁄8 | 1.912 | 215⁄16 | 2.938 | 2.844 | 3.392 | 3.242 | 11⁄4 | 1.276 | 1.13 |
2 | 2.039 | 31⁄8 | 3.125 | 3.025 | 3.608 | 3.449 | 111⁄32 | 1.388 | 1.175 |
21⁄4 | 2.305 | 31⁄2 | 3.5 | 3.388 | 4.041 | 3.862 | 11⁄2 | 1.548 | 1.327 |
21⁄2 | 2.559 | 37⁄8 | 3.875 | 3.75 | 4.474 | 4.275 | 121⁄32 | 1.708 | 1.479 |
Bolt Diameter | Minimum Clamp Load | Tightening Torque lb-ft |
---|---|---|
1/2 | 12000 | 100 |
5/8 | 19000 | 198 |
3/4 | 28, 000 | 350 |
7/8 | 39, 000 | 569 |
1 | 51, 000 | 850 |
1-1/8 | 56, 000 | 1, 050 |
1-1/4 | 71, 000 | 1, 479 |
1-3/8 | 85, 000 | 1, 948 |
1-1/2 | 103, 000 | 2, 575 |
Bolt Diameter | Minimum Clamp Load | Tightening Torque lb-ft |
---|---|---|
1/2 | 12000 | 105 |
5/8 | 19000 | 210 |
3/4 | 28, 000 | 365 |
7/8 | 39, 000 | 595 |
1 | 51, 000 | 890 |
1-1/8 | 56, 000 | 1, 100 |
1-1/4 | 71, 000 | 1, 550 |
1-3/8 | 85, 000 | 2, 045 |
1-1/2 | 103, 000 | 2, 700 |
Material | Standards | Grades |
---|---|---|
Nickel Alloy Heavy Hex Head Bolts | ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472 | UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3) |
Stainless Steel Heavy Hex Head Bolts | ASTM / ASME A/SA 193 / 194 | B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4 |
Alloy Steel Heavy Hex Head Bolts | ASTM / ASME A/SA 193 / 194 GR | B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M |
Duplex Steel Heavy Hex Head Bolts | UNS NO. S 31803, S 32205 | Range: M10 TO M100, LENGTH UPTO 5 METERS |
Nonmetallic Materials: | Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105 | |
High-Temp Alloys | Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330 | |
Copper Base Alloys | Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles | |
Aluminum Alloys: | 1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075 | |
Trademarks: | Carpenter, Armco, INCO, Cabot, DuPont. | |
Finish: | Black Oxide, Zinc Plating, Hot Dip Galvanized |
