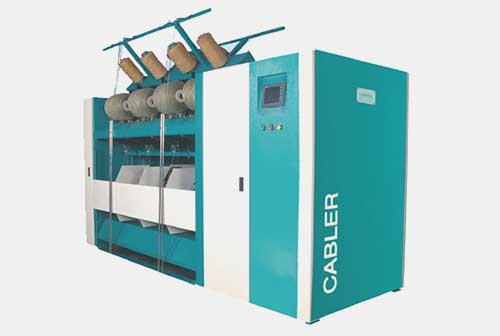

Heavy Duty Twister Cabler Machine

We at Meera specialized in yarn twisting technologies developing one by one different machine used for various application pioneered in offering carpet yarn manufacturing machines today. In continuation to this process, the market demands lead us to develop continuous yarn bulking and heat setting machine.

Features

Automatic spindle stop on yarn breakage
Servo driven traverse mechanism
Hysteresis tension device for uniform unwinding avoiding loop formation & twist fluctuation
Direct cabling process in two ply application
Low power consumption due to single yarn balloon
Double the knot less package compared to normal TFO twisting
Universal Spindle design enables easy conversion from the Two For One to the direct cabling process & vice versa
Delivery speed up to 120 mlmin.
Individual motor driven spindle to minimize power noise and maintenance
Overall saving in machine cost, labor cost & power cost by 50%

Application

Carpet yarn
Tyre cord
Single end BCF yarn
As high as 6000 denier with as low as 20 TPM

Technical Specifications

C - 190 / C - 210	C - 260	C - 260
TWIST RANGE	21 to 800 t/m 0.5 to 10 t/inch	21 to 800 t/m 0.5 to 10 t/inch	21 to 800 t/m 0.5 to 10 t/inch
COUNT RANGE	400 to 3000 denier x 2 (upto 6000)	400 to 3000 denier x 2 (upto 6000)	400 to 3000 denier x 2 (upto 8000)
SECTION PITCH	2130 MM	2130 MM	1830 MM
SPINDLE SPEED	up to 8000 RPM	up to 6000 RPM	up to 6000 RPM
DELIVERY SPEED	Max. 120m / min	120m / min	Max. 120m / min
PACKAGE FORMATS	Different tube / cone formats available on application	Different tube / cone formats available on application	Different tube / cone formats available on application
NO. OF SPINDLES(MAX.)	120	96	72
NO. OF SPINDLES PER SEC.	10	8	6
SPINDLE GUAGE IN MM	420	525	600
POT DIAMETER MM	90 / 210	260	260

Feed Package

C - 190	C - 210	C - 260
WINDING TRAVERSE	254 mm.	254 mm.	254 mm.
MAX. PACKAGE DIAMETER	180 mm.	200 mm.	254 mm.
MAX. TUBE LENGTH	290 mm.	290 mm.	290 mm.
MIN. TUBE BORE	57 mm.	57 mm.	57 mm.
NET YARN WEIGHT	Approx 4 kg.	Approx 5 kg.	Approx 8 kg.

Take-Up Package

C - 190	C - 210	C - 260
WINDING TRAVERSE	254 mm.	254 mm.	254 mm.
MAX. PACKAGE DIAMETER	400 mm.	400 mm.	400 mm.
MAX. TUBE LENGTH	290 mm.	290 mm.	290 mm.
MIN. TUBE BORE	57 mm.	57 mm.	57 mm.
NET YARN WEIGHT	Approx 8 kg.	Approx 8 kg.	Approx 12 kg.
