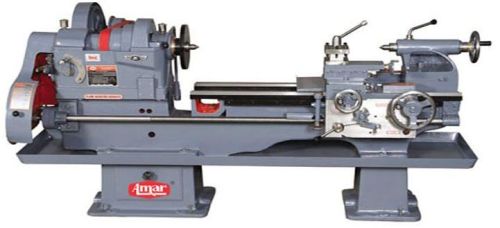

Contact SupplierWe are one of the noteworthy manufacturers, suppliers and exporters of Heavy Duty Lathe Machine. These machines have all gear head and other required accessories that are responsible for their efficient performance. Offered machines are capable of performing various tasks such as cutting, knuckling, sanding, drilling and turning. We have made these qualitative Heavy Duty Lathe Machine available in market for our valued patrons, at market leading prices.
ID | Particulars | Amar 0 | Amar 1 | Amar 2 | Amar 3 | Amar 4 | ||
---|---|---|---|---|---|---|---|---|
1 | Length of Bed | 1675 mm | 2130 mm | 2740 mm | 3050 mm | 3650 mm | ||
2 | Admit Between Centre | 500 mm | 965 mm | 1575 mm | 1905 mm | 2515 mm | ||
3 | Height of Centre Over flat bed Ways. | 255 mm | 255 mm | 255 mm | 255 mm | 255 mm | ||
4 | Max Sawing over bed | 480 mm | 480 mm | 480 mm | 480 mm | 480 mm | ||
5 | Max Sawing over Cross Slide | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm | ||
6 | Max Sawing in gap | 785 mm | 785 mm | 785 mm | 785 mm | 785 mm | ||
7 | Length of grap in front of face plate. | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | ||
8 | Cross Slide Travel | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | ||
Main Spindle | ||||||||
9 | Spindle Nose Dia/Threads | 74.3 x 6 TPI | 74.3 x 6 TPI | 74.3 x 6 TPI | 74.3 x 6 TPI | 74.3 x 6 TPI | ||
10 | Spindle Bore | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | ||
11 | No. of Spindle Speed | 8 | 8 | 8 | 8 | 8 | ||
12 | Range of Spindle R.P.M | 30 to 550 R.P.M. | 30 to 550 R.P.M. | 30 to 550 R.P.M. | 30 to 550 R.P.M. | 30 to 550 R.P.M. | ||
13 | Range of Spindle Diameter | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | ||
TAIL STOCK SPINDLE | ||||||||
14 | Tail Stock Spindle Travel | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | ||
15 | Tail Stock Spindle Morse Taper | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | ||
Lead Screw | ||||||||
16 | Diameter / Threads | 38 mm x 4 TPI | 38 mm x 4 TPI | 38 mm x 4 TPI | 38 mm x 4 TPI | 38 mm x 4 TPI | ||
17 | No. of threads and pitch rang | Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI) |
Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI) |
Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI) |
Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI) |
Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI) |
||
18 | V-Belt | B - 73 | B - 73 | B - 73 | B - 73 | B - 73 | ||
19 | Flat Belt | 50 x 1900 mm | 50 x 1900 mm | 50 x 1900 mm | 50 x 1900 mm | 50 x 1900 mm |
ELECTRICALS |
---|
Electirc motor of 3 HP / 2.25 k.w., 3 Phase, 1440 RPM with Panel board wirings, over load relay, Pushbutton switches, V-belts and fittings. |
