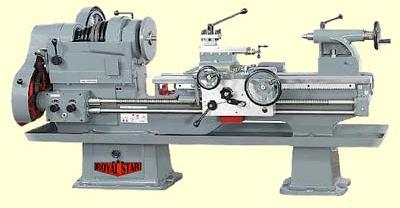

Contact Supplier“Esteem Machines†is specialized in the manufacturing and supplying of highly advanced Heavy Duty Lathe Machines in the industry. The Heavy Duty Lathe Machines made available by us are very powerful and are extensively used for turning, boring, facing or threading of different components. Our Lathe Machines are backed by modern features that make them very effective in their function. Manufactured from the best quality raw materials, these machines are endurable and have long lasting functional life. They are easy to operate and require less maintenance. In addition to this, we are recognized as one of the most distinguished Horizontal Heavy-Duty Lathe Machine Manufacturers and Suppliers in India.
PARTICULARS | Model-1 | Model-2 | Model-3 |
---|---|---|---|
Length of Bed | 7"(2133) | 7"(2133) | 7"(2133) |
Height of Centre | 10"(254) | 12"(305) | 15"(380) |
Width of Bed | 12 3/4"(324) | 12 3/4"(324) | 14 3/4"(375) |
Spindle Bore | 2 1/ÂÂ8"(54) | 3 1/ÂÂ8"(80) | 4 1/ÂÂ8"(105) |
Spindle Bore | 3 1/ÂÂ8"(80) | 4 1/ÂÂ8"(105) | 5 1/ÂÂ8"(130) |
Maximum swing over Bed | 18"(455) | 22"(555) | 27"(685) |
Admit Between Centre | 33"(838) | 33"(838) | 33"(838) |
Length of Gap | 7.5" | 7.5" | 7.5" |
Lead screw of | 4TPI | 4TPI | 4TPI |
RPM can be obtained low/high(8-Speed) | 30/750 | 30/750 | 30/750 |
Weight Approximate | 1200kg | 1300kg | 1500kg |
STANDARD ACCESSORIES | EXTRA EQUIPMENT |
---|---|
CHUCK PLATE | STEADY REST |
CENTRE ADAPTOR | FOLLOW REST |
2 NOS POST CENTRE | FACE PLATE |
TOOL POST KEY | NOTRON GEAR-BOX |
CHANGE GEAR SET | CHUCK |
