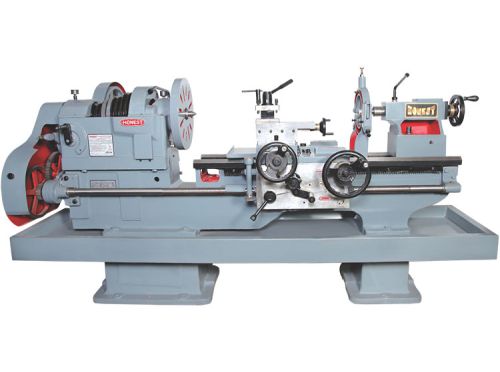

Heavy Duty Lathe Machine

Listing ID #4306918

  • Lead screw Diameter & pitch38mm/4TPI
  • Renge of Matric Threads1 to 6
  • Compound Dlide Travel150mm
  • Spindle Nose & Threadad6TPI / 75mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Drive V-Belt Double Belt C-70
  • Swing over Cross slide 290mm
  • Spindle Bore 53mm
  • Electric Motor 1440 RPM. 3 HP/3 Phase
  • Bed Width 325mm
  • Spindle Nose & Threadad 6TPI / 75mm
  • Height of Center 254mm
  • Tail stock Spindle Travel 190mm
  • Movement of cross slide 300mm
  • Compound Dlide Travel 150mm
  • Renge of inch Threads 2 to 24 TPI
  • Swing in Gap 800mm
  • Swing Over Bed 490mm
  • Bed Type 2V & 2 Flat
  • Tail stock Spindle Dia/Taper 57.15mm/MT-4
  • Lead screw Diameter & pitch 38mm/4TPI
  • Renge of Matric Threads 1 to 6

Standard Accessories

  • 10" Chuck Plate
  • Face Plate
  • Steady Rest
  • Spindle Sleeve
  • 2 Dead Center
  • Change Gear Set
  • Tool Post Bolt Key
  • Motor Pulley


Range Admit Between Center Weight (Approx)
5.5 feet 550mm 1100kg.
7 feet 1000mm 1300kg.
9 feet 1550mm 1500kg.
10 feet 1850mm 1750kg.
12 feet 2450mm 2050kg.
14 feet 3050mm 2250kg.
16 feet 3650mm 2450kg.
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Gayatri Machine Tools established in 1993. Our company manufacturer and exporter of All Types of Lathe Machines under the Brand name 'HONEST'.
Manufacturing plant is equipped with modern manufacturing facilities along with technically sound management team and qualified engineers for manufacturing quality products which ensures adequate process control to produce right kind of all types of Lahte Machines. The raw material used for manufacturing Hydraulic Hacksaw Machine is with specified grade.
Efficient management, skilled professional team, state-of-art infrastructure and standard process and no compromise with the quality is the real strengths of Gayatri Machine Tools for meeting complete customer satisfaction.
