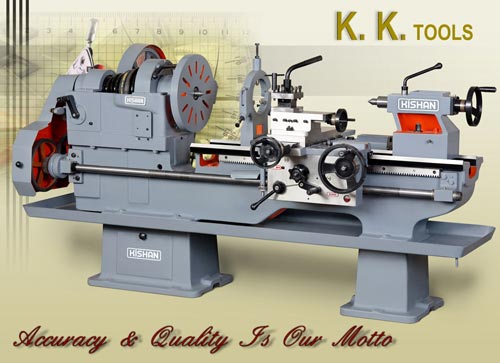

Contact SupplierModel | Unit | HD -A | HD-B | HD-C | HD-D | HD-E | HD-F | HD - G |
---|---|---|---|---|---|---|---|---|
Bed Between Centre | mm/feet | 1670/5.5 | 2130/7 | 2740/9 | 3040 /10 | 3650/12 | 4260/14 | 4870/16 |
Admit Between centre | mm | 535 | 990 | 1600 | 1900 | 2500 | 3125 | 3735 |
Spindle Motor Power | HP/kw | 2/1.5 | 2/1.5 | 2/1.5 | 3/2.25 | 3./2 . 25 | 5/3 . 75 | 5/3.75 |
Weight (Approx.) | K.g | 1165 | 1250 | 1360 | 1550 | 1715 | 2100 | 2350 |
Dimension (Approx.) | (L x W x H) | 1990 x 1055 x 1370 | 2440 x 1065 x 1370 | 3350 x 1065 x 1370 | 3350 x 1065 x 1370 | 3960 x 1065 x 1370 | 4585 x 1065 x 1370 | 5185 x 1065 x 1370 |
Specifications
Bed width | mm/inch | 323 / 12.75 |
Bed Type | V/ Flate | 2-Feb |
Gap Length | mm | 165 |
Gap length in front of face plate | mm | 175 |
Height of centre | mm / inch | 254/10 |
Swing over bed | mm | 495 |
Swing over cross slide | mm | 380 |
Swing over gap | mm | 785 |
Cross Slides Travel | mm / inch | 240 |
Compound slide travel | mm | 140 |
Tool Shank section max | mm | 25 |
Spindle nose Dia | mm/ TPI | 74.3/6 |
Spindle Sleeve nose | MT | 4 |
Spindle Bore | mm /inch | 54/2.125 |
Spindle Speed | No. | 8 |
Spindle Range | RPM | 25-450 |
Spindle drive 'V' Belt | Sec.-Size | C-71 |
Flat belt | mm | 50 x 1980 |
Quill dia | mm | 58 |
Quill stroke | mm | 190 |
Taper in Quill | MT | 4 |
Threads Cutting Metric pitch | Nos./mm | 13 / 1 to 6 |
Threads Cutting English | Nos. / TPI | 19 / 2 to 24 |
Lead Screw Dia | mm /TPI | 38/4 |
