Heat Of Compression Air Dryer

Heat Of Compression Air Dryer

Listing ID #196930

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

We bring forth superior quality Heat Of Compression Air Dryer, which is widely demanded among the clients owing to its qualitative features. Our Heat Of Compression Air Dryer is used to heat the air....
View More Details
Send Enquiry

Company Information

AIR-N-GAS Process Technologies verified-icon
Vatva, Ahmedabad, Gujarat
View Number
  • Member Since 13 Years
  • Nature of Business Retailer
  • Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

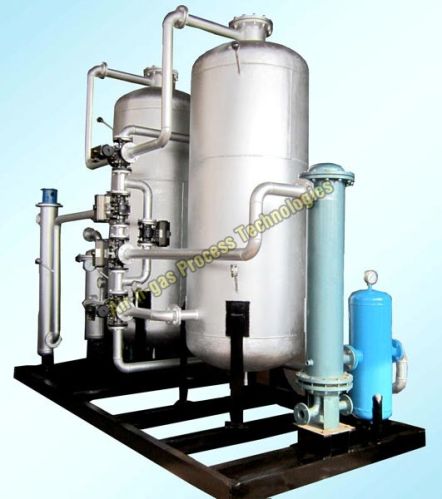

We bring forth superior quality Heat Of Compression Air Dryer, which is widely demanded among the clients owing to its qualitative features. Our Heat Of Compression Air Dryer is used to heat the air for regeneration. Further, this Heat Of Compression Air Dryer can be availed in various specifications as per the requirement.
Features

  • No purge loss
  • Saving on electrical Heater load
  • Atmospheric dew point of (-) 600C can be easily achieved
  • Most economical in the range from 400 CFM onwards




Technical Specifications

Model No. Capacity Pipe Line size mm Cooling Water Reqt. LPM Approx. Overrall Dimensions
M3 / HR CFM Length mm Width mm Height mm
HOC - 01 81.5 50 25 12 1400 1200 1800
HOC - 02 122.7 75 25 18 1500 1200 1800
HOC - 03 163 100 25 24 1600 1400 1800
HOC - 04 244.5 150 40 36 1800 1500 2000
HOC - 05 326 200 40 48 1800 1500 2000
HOC - 06 489 300 50 72 2000 1500 2200
HOC - 07 652 400 50 96 2000 1500 2200
HOC - 08 815 500 65 120 2000 1800 2200
HOC - 09 987 600 65 144 2200 1800 2400
HOC - 10 1222 750 80 180 2400 1800 2400
HOC - 11 1630 1000 80 240 2500 2000 2600
HOC - 12 2037 1250 100 300 2500 2000 2800
HOC - 13 2445 1500 100 360 2500 2000 3000
HOC - 14 3260 2000 125 480 3000 2000 3000
HOC - 15 4075 2500 125 600 3000 2000 3400

Download Detail File : Click Here

Graph


Download Detail File : Click Here

Company Details close-icon

Air-N-Gas Process Technologies was established in the year 2007, with an aim to boost the technical advances in the field of Adsorption based Gas Separation Systems, Air Filters and Air Dryers. In this short span of time, we have earned ourselves a niche in the air dryers industry and have established a great rapport amongst the leading manufacturers, exporters, traders and suppliers. Supported by a group of efficient technocrats, we are headed by Mr. Shailesh Verma (B.Tech-Mech, DMM), who has accumulated a rich experience of more than 17 years in the respective field. Today, we have emerged as a specialized concern in designing, manufacturing, exporting, site installation and commissioning of a varied range of products like Nitrogen/Oxygen Gas Generators, Compressed Air Drying Units, High/Low Pressure Dryers, Air Filters, After Coolers, Auto Drain Valves, Air Receivers, Pressure Vessels, Air & Water Chillers, etc.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees Below 20
  • Year of Establishment 2007
