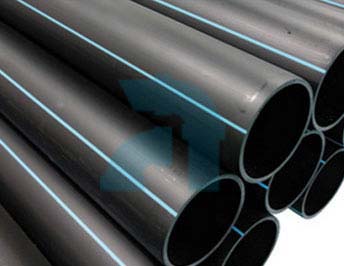

HDPE Polyethylene Pipes

Listing ID #1277801

Get Latest Price

MaterialHDPE
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Polyethylene Pipe that we offer is manufactured using highly advanced techniques under the supervision of experts. It is joined with another pipe with the help of heat fusion method or mechanical....

View More Details

Send Enquiry

Product Details

Polyethylene Pipe that we offer is manufactured using highly advanced techniques under the supervision of experts. It is joined with another pipe with the help of heat fusion method or mechanical fitting. It is made available by us in many styles and types so as to fulfill varied requirements of the buyers. We conduct stringent quality tests on Polyethylene Pipe so as to ensure that only the defect-free product reaches the customers’ end. We are named among the renowned Manufacturers and Suppliers of Polyethylene Pipe. We have the capability to deliver retail as well as bulk orders for Polyethylene Pipe within the stipulated time frame.

Installation Method :

Polyethylene & Polypropylene pipe or fittings are joined to each other by heat fusion or with mechanical fittings. Plastics may be joined to other materials by means of compression fittings, flanges, or other qualified types of manufactured transition fittings. There are many types and styles of fittings available from which the user may choose. Each offers it's particular advantages and limitations for each joining situation the user may encounter. Contact with the various manufacturers is advisable for guidance in proper applications and styles available for joining as described in this document. There will be joining methods discussed in this document covering both large and small diameter pipe.

Application :

Water Treatment
Food & Beverage
Water and Gas Utilities
Shipbuilding

Advantages :

Outstanding Flexibility
High Impact Resistance even at very Low Temperatures\
Safe and Easy joining by welding
Excellent cost-Performance ratio

Material Grade 80

OD		PN 6		PN 8		PN 10		PN 12.5		PN 16
		Wall Thickness		Wall Thickness		Wall Thickness		Wall Thickness		Wall Thickness
MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.
20.0	20.3	-	-	-	-	-	-	2.3	2.8	2.8	3.3
25.0	25.3	-	-	-	-	2.3	2.8	2.8	3.3	3.5	4.1
32.0	32.3	-	-	2.4	2.9	3.0	3.5	3.6	4.2	4.5	5.2
40.0	40.4	2.3	2.8	3.0	3.5	3.7	4.3	4.5	5.2	5.6	6.4
50.0	50.5	2.9	3.4	3.8	4.4	4.6	5.3	5.6	6.4	6.9	7.8
63.0	63.6	3.6	4.2	4.7	5.4	5.8	6.6	7.0	7.9	8.7	9.8
75.0	75.7	4.3	5.0	5.6	6.4	6.9	7.8	8.4	9.5	10.4	11.7
90.0	90.9	5.1	5.9	6.7	7.6	8.2	9.3	10.0	11.2	12.5	14.0
110.0	111.0	6.3	7.2	8.2	9.3	10.0	11.2	12.3	13.8	15.2	17.0
125.0	126.2	7.1	8.1	9.3	10.5	11.4	12.8	13.9	15.5	17.3	19.3
140.0	141.3	8.0	9.0	10.4	11.7	12.8	14.3	15.6	17.4	19.4	21.6
160.0	161.5	9.1	10.3	11.9	13.3	14.6	16.3	17.8	19.8	22.1	24.6
180.0	181.7	10.2	11.5	13.4	15.0	16.4	18.3	20.0	22.2	24.9	27.6
200.0	201.8	11.4	12.8	14.9	16.6	18.2	20.3	22.3	24.8	27.6	30.6
225.0	227.1	12.8	14.3	16.7	18.6	20.5	22.8	25.0	27.7	31.1	34.5
250.0	252.3	14.2	15.9	18.6	20.7	22.8	25.3	27.8	30.8	34.5	38.2
280.0	282.6	15.9	17.7	20.8	23.1	25.5	28.3	31.2	34.6	38.7	42.8
315.0	317.9	17.9	19.9	23.4	26.0	28.7	31.8	35.0	38.7	43.5	48.1
355.0	358.2	20.1	22.4	26.3	29.2	32.3	35.8	39.5	43.7	49.0	54.1
400.0	403.6	22.7	26.4	29.7	34.4	36.4	42.1	44.5	51.4	55.2	63.7
450.0	454.1	25.5	29.6	33.4	38.7	41.0	47.7	50.0	57.7	-	-
500.0	504.5	28.4	32.9	37.1	42.9	45.5	52.6	55.6	64.2	-	-
560.0	565.0	31.7	36.7	41.5	48.0	51.0	58.9	-	-	-	-
630.0	635.7	35.7	41.3	46.7	54.0	57.3	66.1	-	-	-	-
710.0	716.4	40.2	46.5	52.6	60.7	-	-	-	-	-	-
800.0	807.2	45.3	52.3	-	-	-	-	-	-	-	-
900.0	908.1	51.0	58.9	-	-	-	-	-	-	-	-
1000.0	1009.0	56.7	65.5	-	-	-	-	-	-	-	-
Note : Pressure Rating in : Kg/cm²

Material Grade PE 100

OD		PN 6		PN 8		PN 10		PN 12.5		PN 16
		Wall Thickness		Wall Thickness		Wall Thickness		Wall Thickness		Wall Thickness
MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.
20.0	20.3	-	-	-	-	-	-	-	-	2.3	2.8
25.0	25.3	-	-	-	-	-	-	2.3	2.8	2.9	3.4
32.0	32.3	-	-	-	-	2.4	2.9	2.9	3.4	3.7	4.3
40.0	40.4	-	-	2.4	2.9	3.0	3.5	3.7	4.3	4.6	5.3
50.0	50.5	2.3	2.8	3.0	3.5	3.7	4.3	4.6	5.3	5.7	6.5
63.0	63.6	2.9	3.4	3.8	4.4	4.7	5.4	5.7	6.5	7.1	8.1
75.0	75.7	3.5	4.1	4.5	5.2	5.6	6.4	6.8	7.7	8.5	9.6
90.0	90.9	4.1	4.8	5.4	6.2	6.7	7.6	8.2	9.3	10.2	11.5
110.0	111.0	5.0	5.7	6.6	7.5	8.1	9.2	10.0	11.2	12.4	13.9
125.0	126.2	5.7	6.5	7.5	8.5	9.2	10.4	11.3	12.7	14.1	15.8
140.0	141.3	6.4	7.3	8.4	9.5	10.3	11.6	12.7	14.2	15.8	17.6
160.0	161.5	7.3	8.3	9.6	10.8	11.8	13.2	14.5	16.2	18.1	20.2
180.0	181.7	8.2	9.3	10.8	12.1	13.3	14.9	16.3	18.2	20.3	22.6
200.0	201.8	9.1	10.3	12.0	13.4	14.8	16.5	18.1	20.2	22.6	25.1
225.0	227.1	10.3	11.6	13.5	15.1	16.6	18.5	20.4	22.7	25.4	28.2
250.0	252.3	11.4	12.8	15.0	16.7	18.4	20.5	22.6	25.1	28.2	31.3
280.0	282.6	12.8	14.3	16.8	18.7	20.6	22.9	25.3	28.1	31.6	35.0
315.0	317.9	14.4	16.1	18.9	21.0	23.2	25.8	28.5	31.6	35.5	39.3
355.0	358.2	16.2	18.1	21.2	23.6	26.2	29.1	32.1	35.6	40.0	44.2
400.0	403.6	18.2	21.2	23.9	27.7	29.5	34.2	36.2	41.9	45.1	52.1
450.0	454.1	20.5	23.8	26.9	31.2	33.1	38.3	40.7	47.7	50.8	58.7
500.0	504.5	22.8	26.5	29.9	34.6	36.8	42.6	45.2	52.2	56.4	65.1
560.0	565.0	25.5	29.6	33.5	38.8	41.2	47.6	50.6	58.4	-	-
630.0	635.7	28.7	33.3	37.7	43.6	46.4	53.6	56.9	65.7	-	-
710.0	716.4	32.3	37.4	42.4	49.0	52.3	60.4	-	-	-	-
800.0	807.2	36.4	42.1	47.8	55.2	58.9	68.0	-	-	-	-
900.0	908.1	41.0	47.4	53.8	62.1	-	-	-	-	-	-
1000.0	1009.0	45.5	52.6	-	-	-	-	-	-	-	-
Note : Pressure Rating in : Kg/cm²
