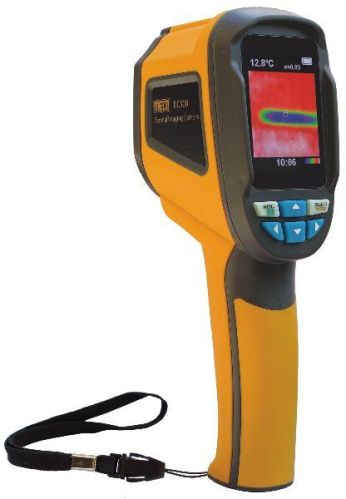

TIC300 is a Thermal Imaging Camera which combines the functions of surface temperature measurement and real-time thermal imaging.
Traditional Thermal Imaging Cameras measure each
component one by one but TIC300 does it together thus saving customer's time. The potential problem is clearly displayed on the color screen which helps customer to quickly locate the
central point and temperature of the problem area.
To improve recognition, this product is equipped with a vision camera. Based on practical requirements, it can turn thermal
image into visional image. Thermal image and visional image can be stored in the memory card. Adjust the images and store them in PC which are used to generate reports or for printing.
After seconds it can be tested. This product is the optimum product for electrician and maintenance personnel. It can quickly find out the problem area.
2.4" Color Displsay
Memory Card : Micro SD Card (installed)
File Format : BMP
Set Control : Unit Adjustment / Language / Date Time Format / Automatic Shutdown
Battery Type : AA x 4 Batteries
Battery Life : 6 Hours
Size : 212 x 95 x 62 (approx)
Total Pixel 3600

Features:

Resolution 60 x 60
Thermal Sensitivity 0.15C
Temperature Range -20C ~ 300C ( -4F ~ 572F)
Image Capturing Frequency 6 Hz
Storage Temperature -20C ~ 50C
Drop Resistance 2m
Vibration 2G
IEC 60068 - 2 - 6
Relative Humidity 10% RH ~ 80% RH
