Metal Handheld Clinching Systems, Certification : ISO 9001:2008

Listing ID #6261629

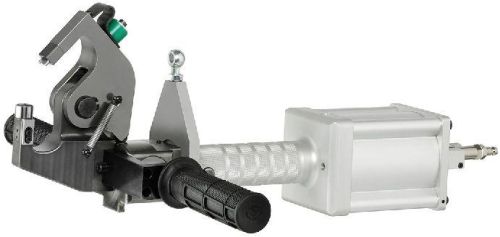

The Python LA BE is provided with built-in air pressure multiplier versatile and easy to handle. It is a tool able to perform the clinching points in areas otherwise
inaccessible for other types of the clamps. Thanks to its system of mechanical opening of the head, the Python LA BE is capable of passing obstacles such as for example folded edge and perform a clinching point beyond them. The Python LA BE, exclusively designed by JuradoTools, is able to work with a thrust up to 28
kN which makes it a powerful tool as well specially thought for HVAC sector. It is supplied together with gyroscopic support and can be equipped with tool kits
round and trapezoidal with the dies of different height and dimension according to the type and thickness of the sheet metal.
* Also available with working head at 90°.

• Technical Description
• Attachments
• Video

• Total Weight: 6,6 kg
• Max air pressure: 6 bar
• Max hydraulic pressure: 265 bar
• Thrust: 25 kN
• Cycle time: 0,8 sec
• Total sheet thickness mild steel: 3,0 mm
• Total sheet thickness stainlees steel: 2,0 mm
