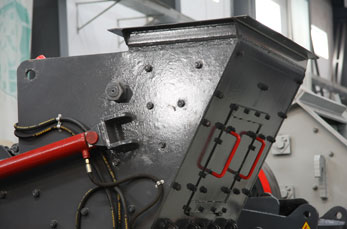

Contact SupplierHammer crusher designed by Mining fits for producing 0-3MM coarse powder products. This machine adopts theories of traditional crushing machines and grinding mills. It makes up the shortage of common mills, and it is the best choice to produce coarse powder at big capacity.
Â
Pretreatment: Using the hydraulic hammer to crush the big stone into smaller one, and arrange the worker to cut through the long reinforcement to prevent damaging the belt conveyor.
Model | Rotor diameter (mm) | Number of hammer | Maximum feed size (mm) | Opening size (mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Overall dimension (mm) |
PC300×400 | 400×300 | 16 | <100 | <15 | 3-8 | 11 | 1100 | 855×795×862 |
PC400×600 | 600×400 | 20 | <150 | <15 | 8-15 | 18.5 | 1000 | 1155×1100×1255 |
PC600×800 | 800×600 | 28 | <220 | <20 | 15-30 | 45 | 900 | 2360×1500×1580 |
